Electric magnetic lock - For doors and gates - DANBIT

Elektriske magnetlåse

Here you will find the selection of our electronic magnetic locks. The magnetic locks are most often used for access control and can be controlled electronically. The locks are very robust, and several of them have a holding force of over 500kg, so they can resist any. penetration. See the great selection below.

Are you with a project that requires several different components and assemblies, incl. door magnets, please contact us today and let us help you with your project.

Elektriske magnetlåse

Subcategories

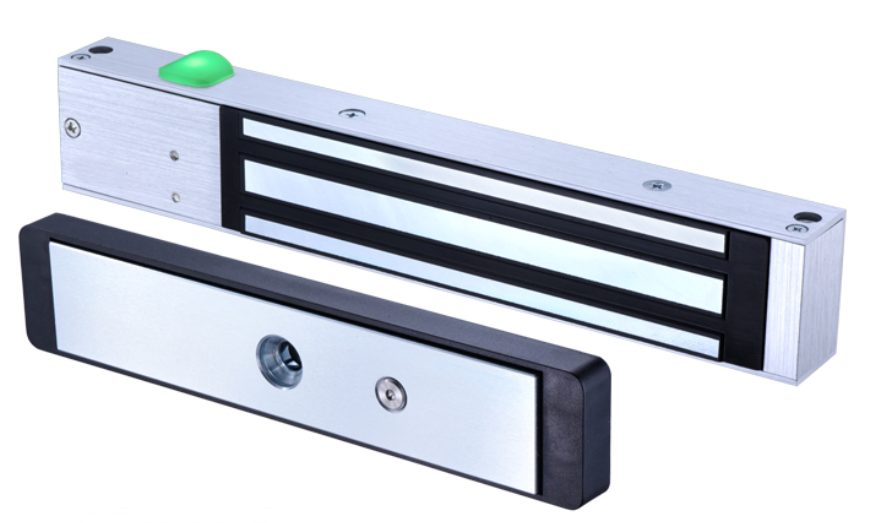

Outdoor electronic-magnet /...

<p>Outdoor DOOR MAGNET which is a minimum of IP65. Housing is extruded aluminum or stainless steel. Available in several models, as a single magnet for a door or double for a swing door, doors, gates. Available in several holding strengths. Order options such as close sensor (Bond sensor output), timer etc. Most are for both 12 and 24VDC. Waterproof versions are rated IP67 as minimum.</p>

There are 32 products.

Sort by:

Showing 1-12 of 32 item(s)

Quick view Add to Comparison Remove from Comparison

Availability:

Electronic door magnet for 12VDC for embedding in frame. Up to 136kg holding power

Product code: DOOR-MAGNET-MORTMINI

Electronic door magnet for sliding door etc. Holding power up to 136 kg Aluminum housing and vandal-proof Supply voltage for team: 12VDC No holding power when de-energized Operating temperature: -10 - 55°C Humidity: 0-95% non-condensing Magnet: 200 x 32 x 24 mm Door plate: 152 x 32 x 10 mm Weight: approx. 1.5 kg Bond sensor NO/COM Additional access system - see Accessories

975.00 DKK

Quick view Add to Comparison Remove from Comparison

Availability:

Powerful electronic door magnet, 540 kg holding force, 12 / 24VDC auto-detect. Aluminum, IP65

Product code: DOOR-MAGNET+

door magnet with clamping force up to 545kg Aluminum housing and vandal proof Supply voltage for team: 12VDC or 24VDC, 0.5A / 0,25A No holding power at any voltage Operating temperature: -10 to + 55°C Magnetic: 267 x 68 x 40 mm Door-plate: 185 x 61 x 16 mm Mounting plate for the frame: 267 x 40 x 8 mm Anti-magnetic feature Weight : 4,9kg

1,565.00 DKK

Quick view Add to Comparison Remove from Comparison

Availability:

Electronic door magnet 12 / 24VDC switching 0.5A / 0,25A. Holding force of up to 272kg

Product code: DOOR-MAGNET+E

Electronic door magnet with a holding force of up to 272kg Options: Open-alarm, shut down timer 2-70 sec. Option: alarm relay output Aluminum with epoxy by the coil 12VDC or 24VDC is selected with jumper. 0,5A / 0,25A Magnetic: 250 x 42 x 26 mm Door plate: 185 x 38 x 12 mm Mounting plate: 250 x 25 x 5 mm Anti-magnetic feature Operating temperature: -10 ~ 55C

1,197.00 DKK

Quick view Add to Comparison Remove from Comparison

Availability:

Electronic mini door magnet, 36 kg holding force, 12VDC. Suitable for cabinets, IP65

Product code: DOOR-MAGNET

Miniature Electronic holding magnet for cabinets and closets Supply Voltage 12 VDC, 140mA minimum Holding force up to 36 KG Operating temperature: -10 ~ 55C IP65 close Stainless steel with epoxy filler magnet dimensions: 70 x 38 x 26 mm Counter-plate dimensions: 80 x 32 x 18.5 mm Weight of 350 g

536.00 DKK

Quick view Add to Comparison Remove from Comparison

Availability:

Waterproof electric door magnet, prepared for 12 / 24VDC - see Label, IP65 for outdoor use. Holding force up to 272 kg.

Product code: DOOR-MAGNET-MINI

Door magnet with team power up to 272kg stainless steel and vandal safe IP65 - Designed for harsh outdoor environment Supply voltage: 12VDC or 24VDC 6WATT Prepared for 12 and 24VDC - view Label unit. No holding force at zero voltage Dim: 218 x 44 x 27.5 mm Dim plate for door: 185 x 38 x 12 mm Operating temperature: -10 to + 55 ° C Weight: 1.5kg Buying access system - see accessories

1,560.00 DKK

Quick view Add to Comparison Remove from Comparison

Availability:

Mini door magnet for 12 or 24VDC, 6 watts, automatic switching, indoors and for outward door. Holding force up to 140kg

Product code: DOOR-MAGNET-MI

door magnet with clamping force up to 140kg Stainless steel and vandal proof supply voltage of teams: 12 or 24VDC, 6Watt Automatic switching between 12 and 24VDC Active with applied voltage no holding power by energized Operating temperature: -10 - 55°C Magnetic: 200 x 36 x 23 mm Door-plate: 152 x 32 x 10 mm Mounting plate for the frame included weight: 1.2kg

1,077.00 DKK

Quick view Add to Comparison Remove from Comparison

Availability:

Electronic door magnet with clamping force up to 364KG, 12 / 24V DC,

Product code: DOOR-MAGNET-LOCK

Electronic door magnet 12 / 24V DC 363 KG holding force Operating temperature: -10-55 degrees Fungtighed: 0-96% non-condensing Blue Magnetic: (L) 265 (W) 29, (D) 49mm A valve plate (L) 185 (W) 45, (D) 14mm mounting plate (L) 265 (W) 29, (D) 6.5mm Weight: 2.79 KG

1,469.00 DKK

Quick view Add to Comparison Remove from Comparison

Availability:

Electronic lock for mounting on cabinets and doors. Holding power of 150kg. Hold voltage is 12VDC. Release when powerless.

Product code: LOCK-CAB12V150

Hold voltage - 12VDC Holding Force: 150kg Dimensions: 64.1 x 40 x 25 mm | Weight: 0.18kg

748.00 DKK

Quick view Add to Comparison Remove from Comparison

Availability:

Waterproof electronic door magnet, 12VDC. Stainless steel house. Holding force up to 136 kg

Product code: DOOR-MAGNET-170U

The door magnet with holding force up to 136 kg stainless steel housing full sealed with epoxy Voltage for holding: 12VDC 6 Watt No holding force at voltageless Operating temperature: -10 to +55°C Magnet: 170 x 32 x 24 mm Amaturple plate: 152 x 32 x 10 mm Anti magnetic function Weight: Approx. 2.5 kg

1,231.00 DKK

Quick view Add to Comparison Remove from Comparison

Availability:

Waterproof electronic door magnet, holding force 545 kg, 12 / 24VDC automatic switching. Stainless steel, 100% sealed with epoxy

Product code: DOOR-MAGNET-V12

door magnet with clamping force up to 545kg Rusrfri steel cabinet full sealed with epoxy and is vandal proof Equipped with thread for flexible tube to protect the cable Supply voltage for team: 12VDC or 24VDC, 6Watt automatic change-over between 12 and 24 VDC No holding force when energized With Bond Sensor (Lock indicator) Operating temperature: -10 to + 55°C Magnetic: 220 x 62 x 41 mm Door-plate: 185 x 61 x 16 mm Anti-magnetic feature Weight: ca. 5 kg

1,483.00 DKK

Quick view Add to Comparison Remove from Comparison

Availability:

Electronic door magnet, holding force 272 kg, 12 / 24VDC with automatic switching. indoor use

Product code: DOOR-MAGNET-LOCK6

door magnet with clamping force up to 272kg Aluminum housing and vandal proof Supply voltage for team: 12VDC or 24VDC, 0.5A / 0,25A Automatic switching between 12 and 24VDC No holding power at any voltage Operating temperature: -10 to + 55°C Magnetic: 250 x 44 x 26 mm Door-plate: 185 x 38 x 12 mm Mounting plate for the frame: 250 x 26 x 5.5 mm Anti magnetic function

1,198.00 DKK

Quick view Add to Comparison Remove from Comparison

Availability:

Waterproof mini door magnet, holding force up to 272 kg. 12 / 24VDC automatic switch IP67 for extreme environmental conditions

Product code: DOOR-MAGNET-GL6

Outdoor electromagnet for example. lattice door, gates etc. door magnet with clamping force up to 272kg Stainless steel and vandal proof With waterproof gland for waterproof flex cable IP67 close - designed for harsh outdoor environment supply voltage by team: 12VDC or 24VDC 6Watt Automatic switching between 12 and 24 VDC No holding force when not energized Magnetic: 218 x 44 x 27.5 mm Door-plate: 185 x 38 x 12 mm Operating temperature: - 10 to + 55°C weight: 1.5kg

2,247.00 DKK

Showing 1-12 of 32 item(s)
