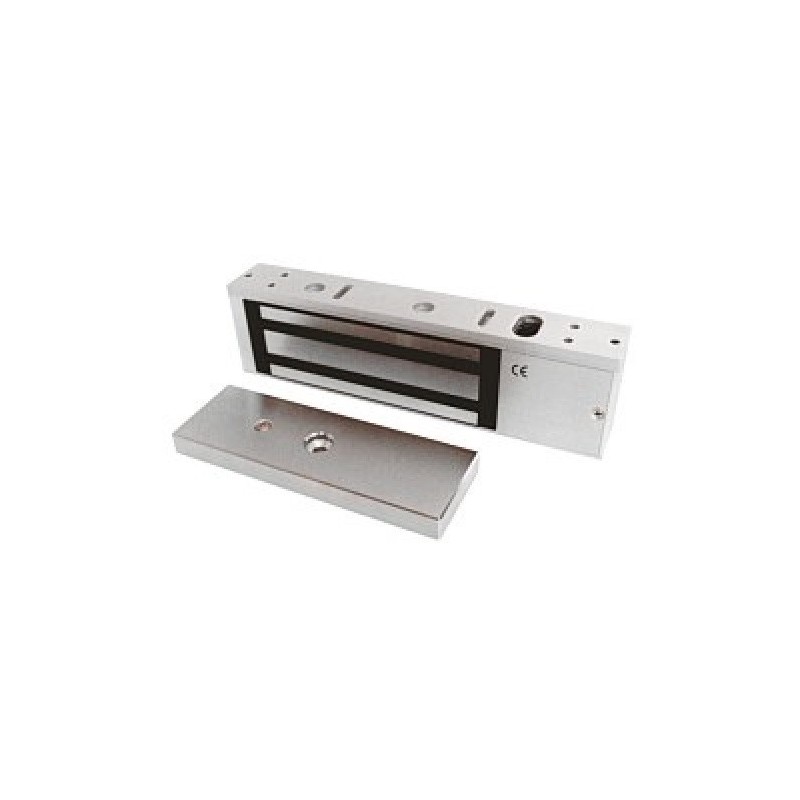

Powerful electronic door magnet, 540 kg holding force, 12 / 24VDC auto-detect. Aluminum, IP65
Product code: DOOR-MAGNET+
DOOR-MAGNET + is used, which can not be installed an electronic låseblik.DOOR-MAGNET + can be used with all access control systems that have relay output. The product contains a powerful electro-magnet which "locks" the stuck to the piece of metal which is mounted on the door. In the voltage of + DOOR magnet, the door can not be opened. An access control connected to DOOR-MAGNET + which accepts such. a password that will interrupt the voltage to the magnet coil and the magnet release, so that the door can be opened. Holding Force: 540 kg.
Rev: LO
DOOR-MAGNET+
1 Item
Data sheet
- Weight
- 4.8 KG
- Forsyning
- Valgfri mellem 12 VDC (500 mA) eller 24 VDC (250 mA). Medfølger ikke. Brug f.eks. DC12V/1A-R-Q
- Driftstemperatur
- -10~55ºC
- Dimensioner
- Magnet:(L) 267(265), (W) 68, (D) 40 mm Armature Plate:(L) 185, (W) 61, (D) 16 mm Mounting Plate:(L) 267(265), (W) 40, (D) 5 mm
door magnet with clamping force up to 545kg
Aluminum housing and vandal proof
Supply voltage for team: 12VDC or 24VDC, 0.5A / 0,25A
No holding power at any voltage
Operating temperature: -10 to + 55°C
Magnetic: 267 x 68 x 40 mm
Door-plate: 185 x 61 x 16 mm
Mounting plate for the frame: 267 x 40 x 8 mm
Anti-magnetic feature
Weight : 4,9kg
