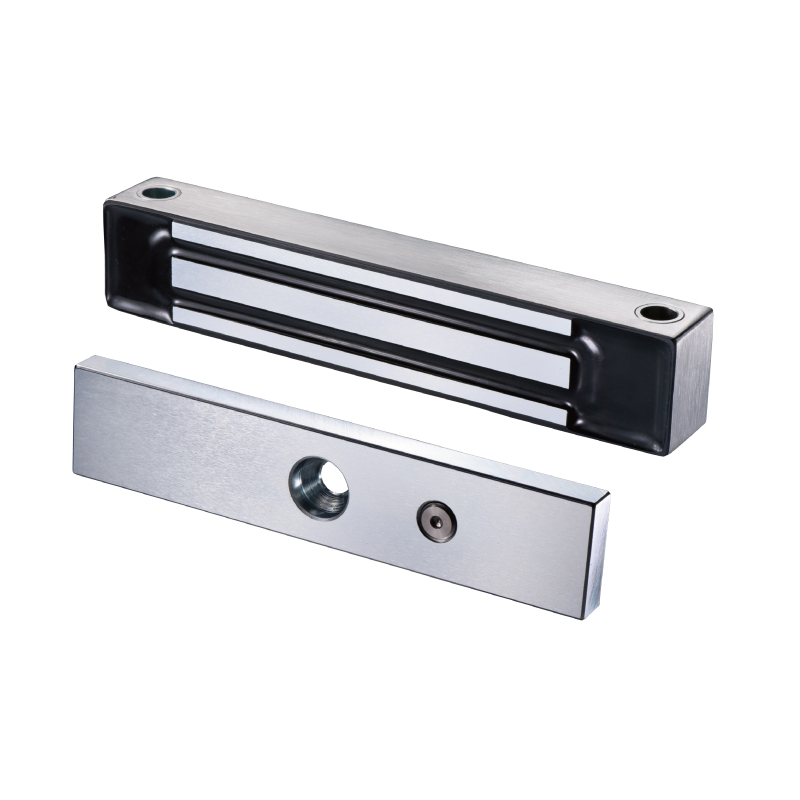

Waterproof electronic door magnet, 12VDC. Stainless steel house. Holding force up to 136 kg

Product code: DOOR-MAGNET-170U

The door magnet with holding force up to 136 kg
stainless steel housing full sealed with epoxy
Voltage for holding: 12VDC 6 Watt
No holding force at voltageless
Operating temperature: -10 to +55°C
Magnet: 170 x 32 x 24 mm
Amaturple plate: 152 x 32 x 10 mm
Anti magnetic function
Weight: Approx. 2.5 kg

  • Add to Comparison Remove from Comparison
    • 1,231.00 DKK
    Tax excluded
    Physically in stock
    Quantity

    Door-magnet-170U is 100% waterproof in stainless steel execution to the compromious harsh environment. Door-magnet-170U can be used with all access control controls that have relay output. The product contains a powerful electro magnet that "locks" itself fixed to the piece of metal that is mounted on the door. When there is voltage on Door-Magnet-170U, the door cannot be opened. An access control connected to Door-Magnet-170U accepts eg. A password will interrupt the voltage of the magnetic coil and the magnet drops so that the door can be opened. Holding power: 136 kg. 24VDC voltage to the holding magnet.

    DOOR-MAGNET-170U
    3 Items
