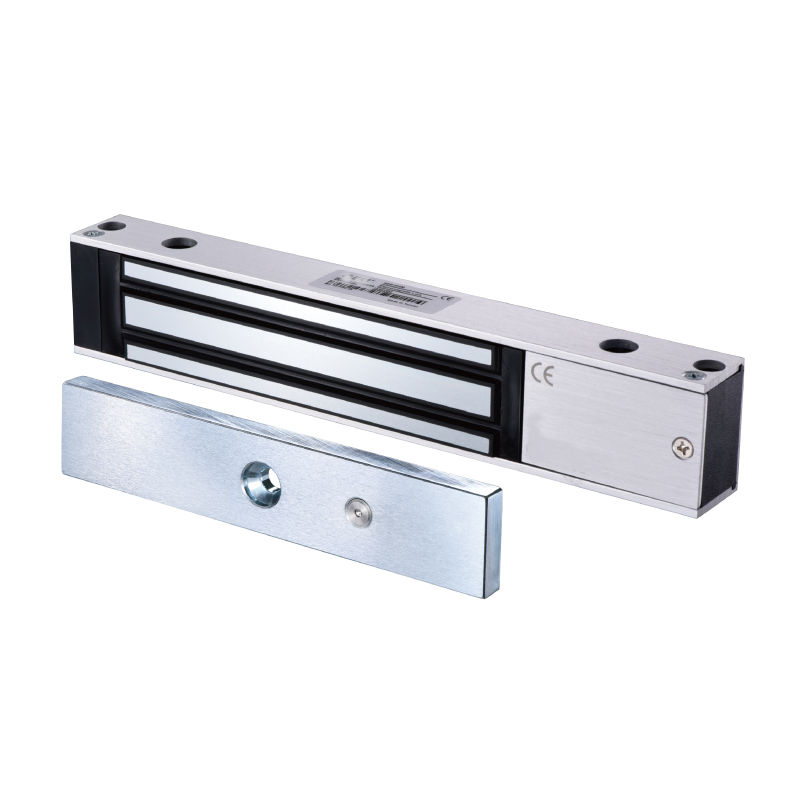

Mini door magnet for 12 or 24VDC, 6 watts, automatic switching, indoors and for outward door. Holding force up to 140kg
Product code: DOOR-MAGNET-MI
Weatherproof electromagnetic holding magnets of various series are specifically designed for high-profile openings that require less intrusive surface mounting locks with aesthetic superior appearance. All are stainless steel and are sealed with epoxy for weather resistant operation. They are available for mounting on most surfaces and with a wide range of fittings for easy installation on all types of doors and door frames.
DOOR-MAGNET-MI
6 Items
Data sheet
- Weight
- 1,2kg
- Forsyning
- 12VDC 0,5A
- Driftstemperatur
- -10 til +55°C
- IP-Tæthed
- IP65
- Dimensioner
- Holdemagnet: 170 x 32 x 24mm. Plade til dør: 152 x 32 x 10mm
- Materiale
- Rustfrit stål. Forseglet med epoxy
- Holder
- 140kg
door magnet with clamping force up to 140kg
Stainless steel and vandal proof
supply voltage of teams: 12 or 24VDC, 6Watt
Automatic switching between 12 and 24VDC
Active with applied voltage
no holding power by energized
Operating temperature: -10 - 55°C
Magnetic: 200 x 36 x 23 mm
Door-plate: 152 x 32 x 10 mm
Mounting plate for the frame included
weight: 1.2kg
