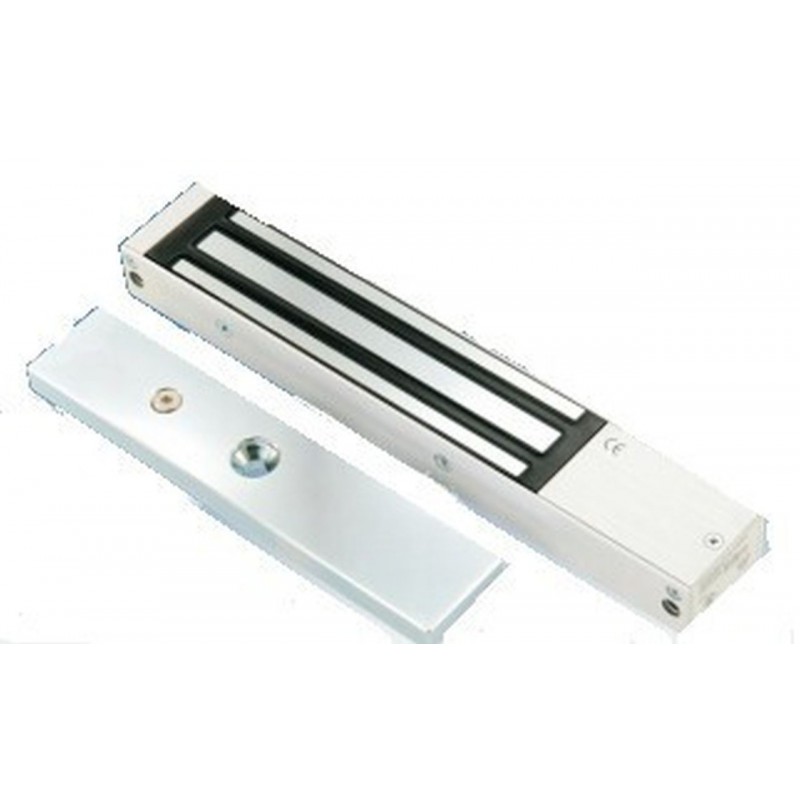

Electronic door magnet 12 / 24VDC switching 0.5A / 0,25A. Holding force of up to 272kg
Product code: DOOR-MAGNET+E
Magnet with adjustable timer - for gates and doors
The door magnet is used where no electronic lock can be installed. The door magnet can be used with all access control controls that have relay output. The product contains a powerful magnet that "locks" to the piece of metal that is mounted on the door. When there is voltage on the unit, the door cannot be opened. When access control accepts e.g. a password, a built-in adjustable timer will ensure that the magnet releases so that the door can be opened - in the preset time.
Holding power: 272kg.
Switch: Can be connected to access control control with relay output and a switch button that switches off the magnet in the time interval the timer is adjusted to
Indicators: An LED can be mounted, which shows that there is voltage on the magnet
Timer interval: Adjustable hours from 2 to 70 sec.
DOOR-MAGNET+E
1 Item
Data sheet
- Weight
- 2 kg
- Forsyning
- Valgfri mellem 12 VDC (500 mA) eller 24 VDC (250 mA). Medfølger ikke. Brug f.eks. DC12V/1A-R-Q
- Driftstemperatur
- -10~55ºC
- Dimensioner
- Magnet:(L) 250, (W) 42, (D) 26 mm Armature plate:(L) 185, (W) 38, (D) 12 mm Mounting plate:(L) 250, (W) 25, (D) 5 mm
Electronic door magnet with a holding force of up to 272kg
Options: Open-alarm, shut down timer 2-70 sec.
Option: alarm relay output
Aluminum with epoxy by the coil
12VDC or 24VDC is selected with jumper. 0,5A / 0,25A
Magnetic: 250 x 42 x 26 mm
Door plate: 185 x 38 x 12 mm
Mounting plate: 250 x 25 x 5 mm
Anti-magnetic feature
Operating temperature: -10 ~ 55C
