Spare part Accessories for MFI-Mport. PIR sensor for wall mounting
60 x 60 mm bfan 12 VDC fan 0,15A / 1.8W power consumption With ball bearings Thermoregulation

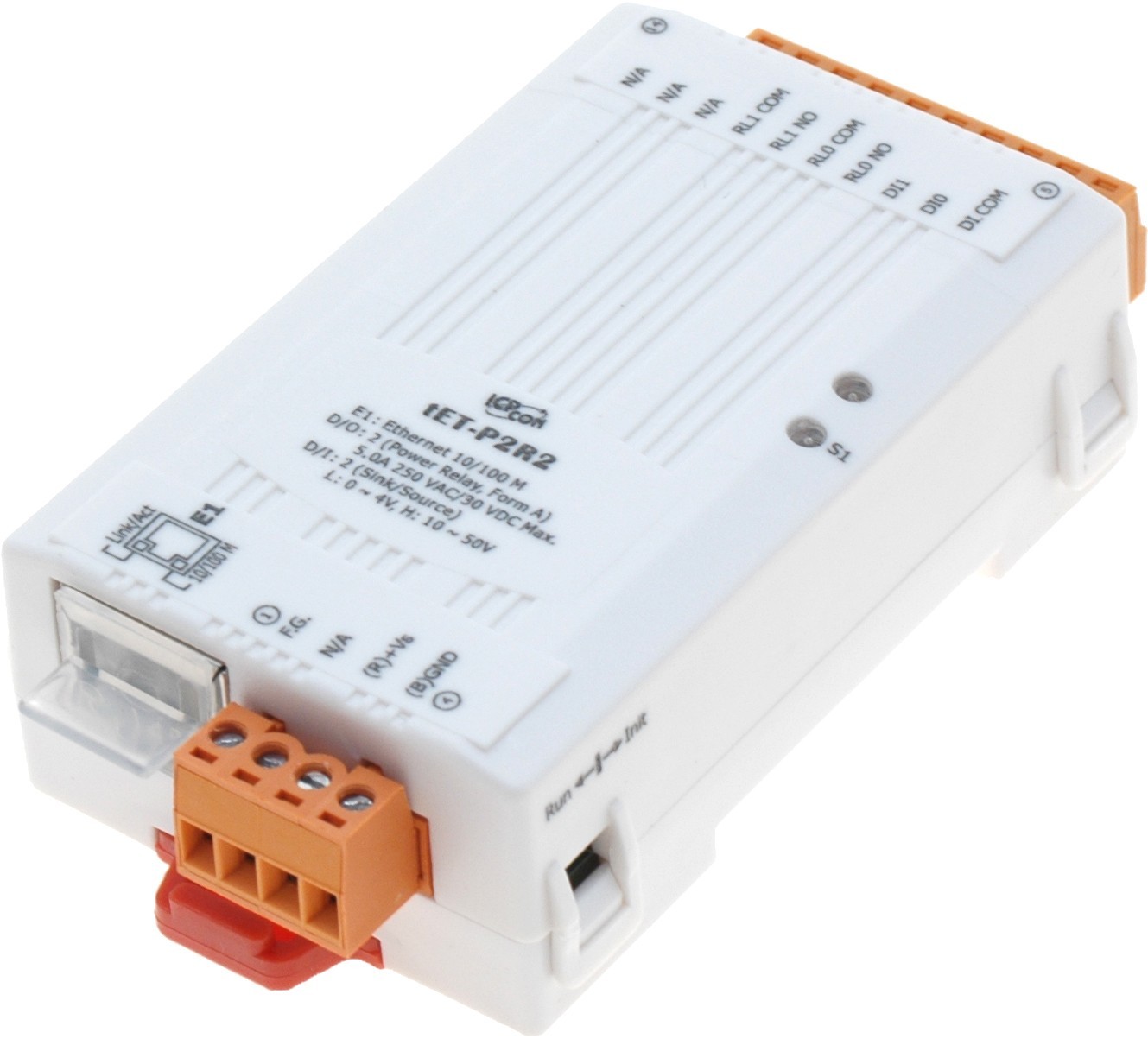

Ethernet-based relay module with Modbus with I/O Pair Function Digital signals are mirrored on another module outputs Power Relay, 250vac, 30vdc, 5A DINr Supply voltage: 10 - 30vdc, 3 watts Dim: 180 x 111 x 70 mm Operating temperature: -25 - +75°C
Ethernet I / O module Modbus / TCP / UDP Slave 1 x RJ45 Ethernet Redundant Voltage supply protocol: TCP, UDP, HTTP, DHCP, BootP and TFTP Web configuration and firmware update via Ethernet 2 x Digital input (Wet - Volt is supplied) 2 x Relay, COM, NO - 250VAC 5A, 30VDC 5A Avoid inductive load to relay contacts with locked DI and 32- Bit 3.5kHz counter with I / O Pair - input is mirrored to anothers output Dual-Watchdog with power-on-safe Value Supply voltage: 12 - 48VDC, 1.7 Watt Dim: 98 x 52 x 27 mm Operating temperature: -25 - +75°C
Modbus / TCP I / O module with built-in Web server Modbus / TCP and Modbus / UDP protocols 2 x RJ45 Ethernet switch to Daisy-Chain topology Dual Watchdog Operating temperature range: - 25 to + 75 ° C I / O Pair connection - Ingang refles in the second's exit 8 x Digital input: Wet (Apply Volt), Dry (Contact) - Digital Input: 0 - + 50CDC or Open / GND 8 x Digital Outout, Open Collector 0 - 40VDC / 650MA Dimensions: 76 mm x 120 mm x 38 mm Supply voltage: 12 - 48vdc, 4 watt your bracket Wall mounting
Network-based module with 16 digital inputs built-in Web server Web HMI Support for both Modbus TCP and Modbus UDP protocols Double watchdog Wide operating temperature range: -25 ~ + 75 ° C Built-in I / O Digital input and counter: 16 channels
Distributed I / O Can be controlled via RS485 or Ethernet 10x digital in 10x relay out 9VDC ~ 24VDC power supply (power adapter not included) 16bit / 100MHz CPU 256 KB ROM, 1 MB SDRAM
6 isolerede indgange med fælles stel og 6 relæudgange
7 pcs. differentialindgange for temperature sensor Pt-100, Pt-1000, Ni120, Cu100/1000 With built-in 2 port ethernet switch LAN Daisy Chain to the next module Built-in Web server Web HMI Modbus TCP and Modbus UDP protocols 16 bit resolution - 12 samples / second Good communication security Dual Watchdog Operating temperature: -25 to + 75 ° C I / O Pair compound. Mirroring input to output Supply voltage: 10 - 30VDC / 3watt

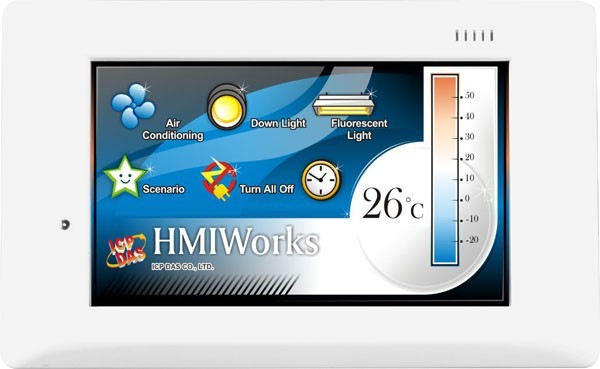

Til mindre styringsopgaver, med TFT display og touch

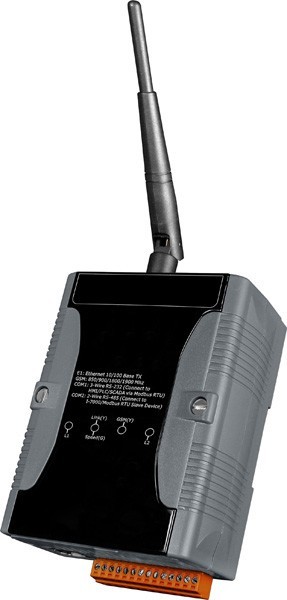

Built-in Web server Logical functions with IF-THEN-ELSE setting IF-THEN-ELSE for simple set of conditions No more programming. Just click and finished Supports I / O, counter, timer, calendar, e-mail, rules Data Logger and data files supported rewind feature Modbus TCP / RTU protocol for SCADA software seamless integration I/O-Board XW with inputs and outputs Supports I-7000 Remote I / O modules (up to 16) Supports Modbus RTU slave units (up to 10) SNTP time synchronization supported Support SMS (GSM: Quad-band 850/900/1800/1900 MHz) Supply voltage: 12 - 48VDC

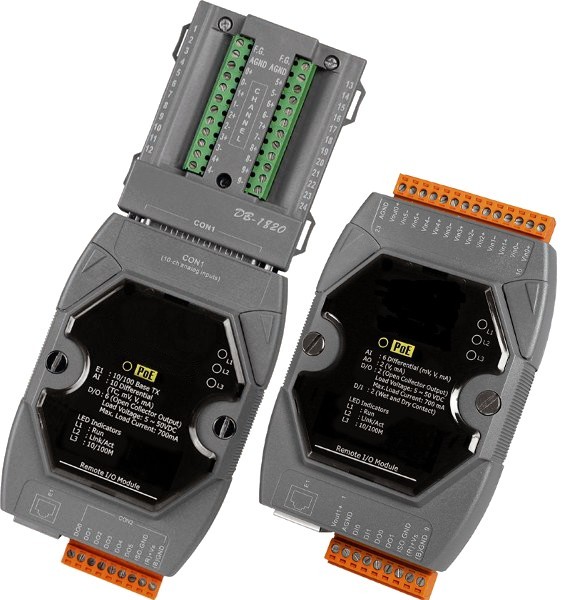

Intelligent Controller with Web Server Logical functions, such as: IF-THEN-ELSE No programming. Just select, click and finish Supporter: I/O module, counter, hour, e-mail Modbus / TCP protocol for SCADA software Seamless integration IEEE 802.3af compatible power over Ethernet ( Poe) 1 x RJ45 - 100Mbit Ethernet 7 x Analog input: 0 - +/-2.5V, 0 - 20mA (ext. Resistors) A/I Resolution: 16bit 10 Samples per Second A/I Also to Thermocouller: J, K, T, E, R, S, B, B, C, L, M, LDIN43710 6 x Digital Output: 0 - + 50VDC / 700mA Open Collector Supply voltage: POE or 12 - 48VDC / 4.5Watt
