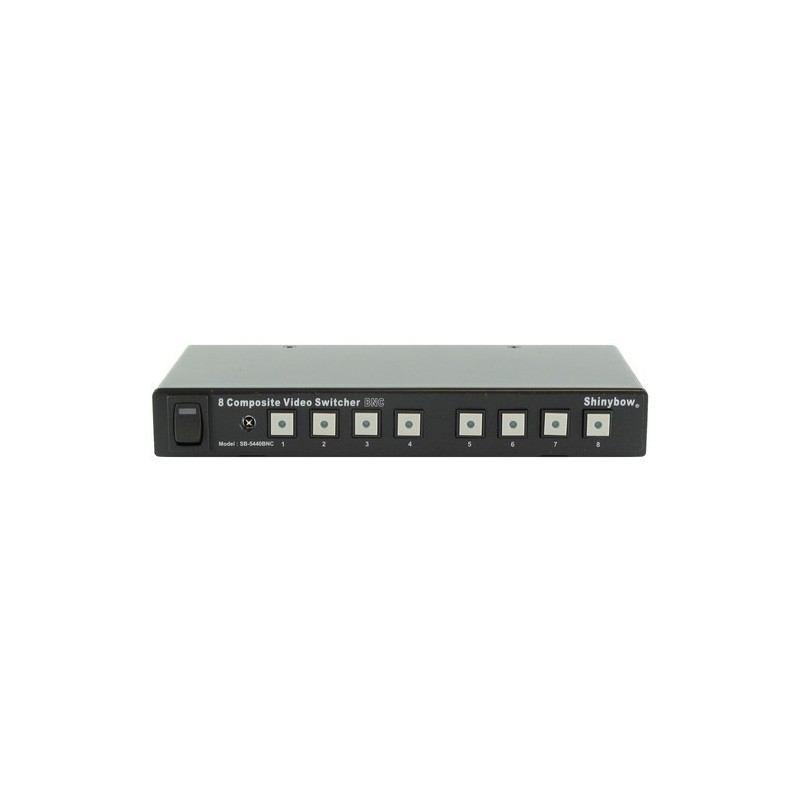

8 x BNC Composite video indgange til 1 x BNC udgang, trykknapvalg og fjernbetjening
Varenummer: SW8BNC-1COMP
Compact composite video/BNC distribution amplifier which supports 8 inputs and 1 output. It is ideal for distributing video signals from security cameras, DVDs, video game consoles, satellite receivers, cable/satellite boxes, and other such devices, to up to 8 screens. The composite splitter is designed to support high-resolution videos for up to 200' (60.96 m) output cable runs.
SW8BNC-1COMP
Produkt information
- Vægt
- 0.49 kg
- Forsyning
- 12 VDC @300 to 1000 mA
- Tilbehør
- Remote control
- LED
- Control by front pushbuttons with LCD readout
- Input
- 8x BNC female port
- Output
- 1x BNC female port
- Trådløs
- IR Frequency 38 KHz
- Opsætning
- Easy to install and simple to operate
- Montering
- Metal: Wall mountable ear panels attached
- Isolation
- 60 dB, 6.5 dB Gain between any input and output
- Dimensioner
- 17.5 x 8.1 x 2.5 cm
- Video
- Composite Video (BNC connectors)
- Anden
- Menu & IR Remote controller
Composite video switch
8 input BNC hun til 1 output BNC han
Understøtter lavere strømforbrug ved fuld belastning under 500 mA
AC/DC adapter- 12 VDC, 300 mA
Video Distortion: 0 .5 dB
Fjernbetjening IR
Til vægmontering
175 x 81 x 25 mm
