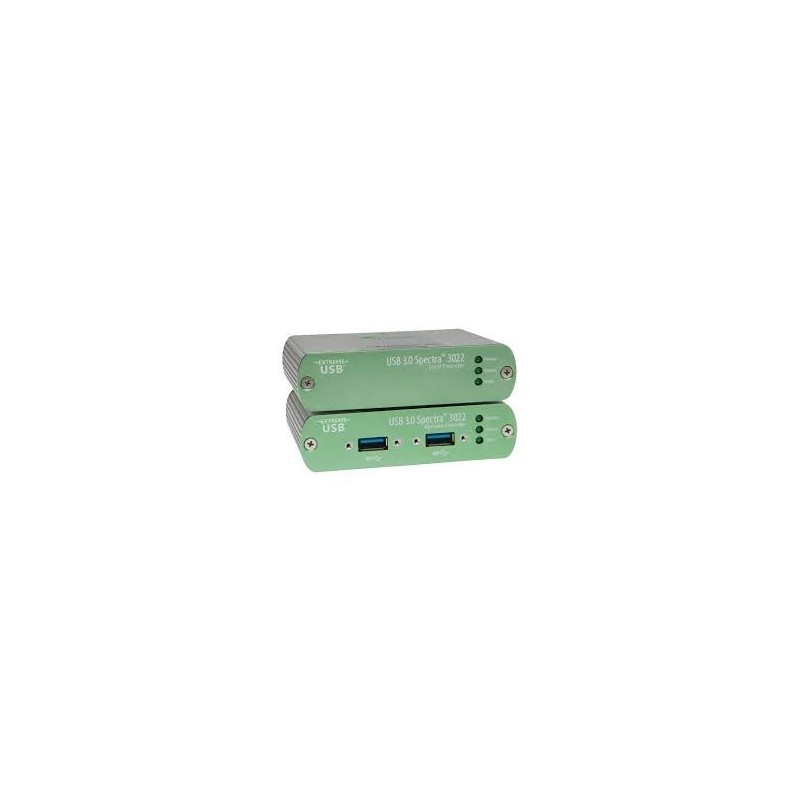

2 ports USB 3.0 extender over Multi Mode fiber (OM3), op til 100m
Varenummer: BOOST-USB3-FIBER
OM2 Multimode Fiber: Up to 50m (165 ft)
OM3 Multimode Fiber:Up to 100m (330 ft)
SPEEDS
USB 3.0: Up to 5 Gbps (not backward compatible with USB 2.0/1.1)
Local Unit
USB Connector: 1 x USB 3.0 Type B Locking Receptacle
Link Connector: 1 x Duplex LC Connector
Dimensions: 100mm x 76mm x 26mm (3.94″ x 2.99″ x 1.02″)
Enclosure Material: Anodized Aluminum
Remote Unit
USB Connectors: 2 x USB 3.0 Type A Locking Receptacles
Link Connector: 1 x Duplex LC Connector
Dimensions: 100mm x 76mm x 26mm (3.94″ x 2.99″ x 1.02″)
Enclosure Material: Anodized Aluminum
Power Connector: 5V DC, 3A, Locking, 2.5 mm, center-positive
Available Current: 900mA for each USB Port
Power Supply: 100-240V AC Brick, Locking
ENVIRONMENTAL
Operating Temperature: 0°C to 40°C (32°F to 104°F)
Storage Temperature: -20°C to 70°C (-4°F to 170°F)
Operating Humidity: 20% to 80% relative humidity, non-condensing
Storage Humidity: 10% to 90% relative humidity, non-condensing
BOOST-USB3-FIBER
2 ports Icron USB3.0 forlænger over fiber kabel op til 100m.
5 Gbps - super hurtig USB3.0 extender
Op til 50m for USB3.0 hukommelsesenheder
Op til 100m for USB3.0 kameraer
SFP transceivers inkluderet
USB stik og strømstik med lås
Fungerer med AIA USB3 Vision™ compliant devices
*** Does NOT support USB 1.1 and USB 2.0 ***
