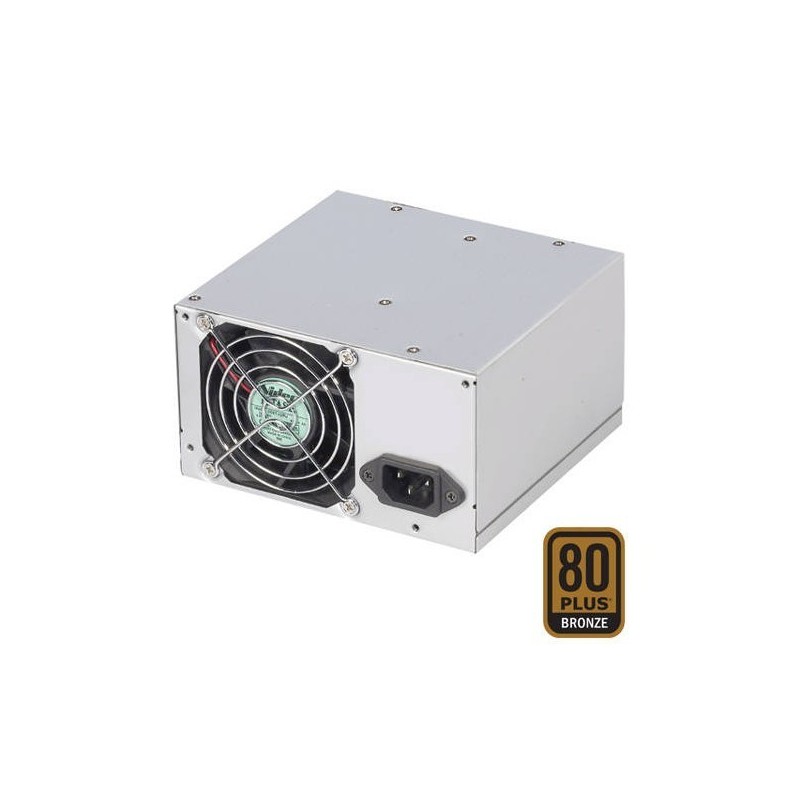

500 Watt ATX strømforsyning

Varenummer: PS500ATX+F

Industriel 500 Watt ATX strømforsyning
Lav ripple & støj
Output overspøndingsbeskyttelse
Kortslutningssikring på alle udgange
Reset nedlukning
Interne 4 cm blæsere
MTBF:100K timer ved 25℃

Mål: H 86 x B 150 x D 140

  • Tilføj til sammenligning Fjern fra sammenligning
    • 1.198,00 DKK
    Ekskl. moms
    På vej ind
    Antal

    General Specification    Effciency:    85% 230VAC
    Voltage Regulation: +3.3V, +12V, +5V, +5SB: ±5% -12V, -5V: ±10%
    PWOK Delay Time: 500ms > PWOK > 100ms
    Input Frequency: 47 ~ 63 Hz
    Input Current: 115V@ 8.0 Amps-rms maximum 230V@ 4.0 Amps-rms maximum
    Output Specification    Hold-up time: 115V/60Hz 17mSec. Minimum@100% Load, 230V/50Hz 17mSec. Minimum@100% Load
    Ouput Voltage Regulation: +3.3Vdc output : +3.5 Vdc minimum, + 4.5Vdc maximum +5Vdc output : +5.5 Vdc minimum, + 6.82Vdc maximum +12Vdc output : +13.4 Vdc minimum, + 15.6Vdc maximum
    Ripple & Noise    115V-rms/230V-rms 5V 20ms Maximum 115V-rms/230V-rms 12V 20ms Maximum
    Over current protection    3.3V:50mV p-p
    5V:50mV p-p
    12V1:120mV p-p
    12V2:120mV p-p
    -12V:120mV p-p
    5Vsb:50mV p-p
    -5V:50mV p-p
    Temperature Range:
    Operating : 0 to +50℃
    Storage :-20 to +80℃
    Humidity: Operating : 85% to % RH, Non-condensing
    Storage : 95% to % RH, Non-condensing
    Dimension: 140mm (L) × 150 mm (W) × 86mm (H)

    PS500ATX+F
