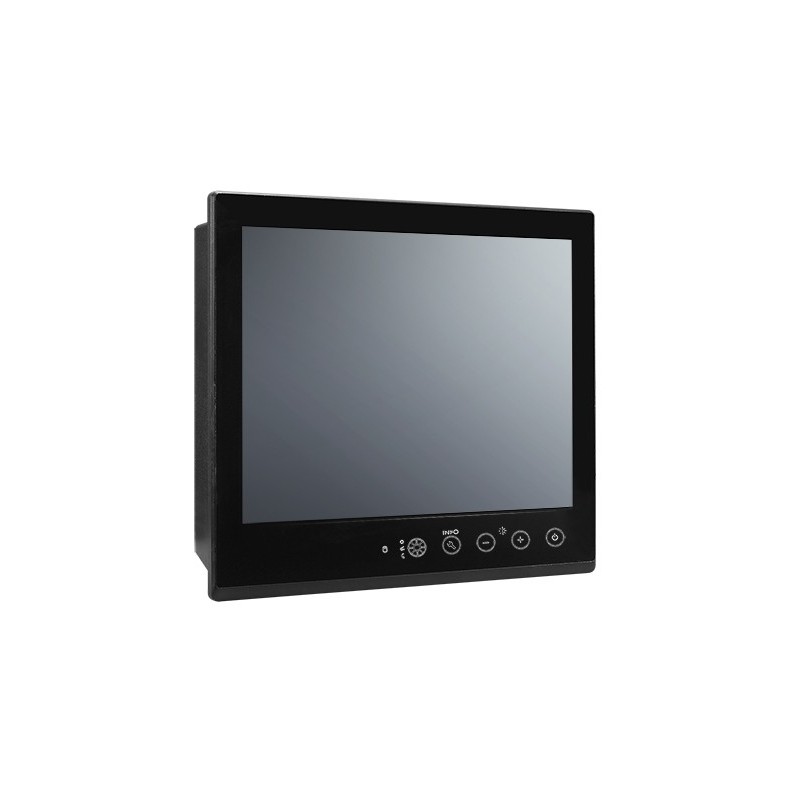

15" LCD monitor, IP66-front, IP20-bagside, Multi-touch, 1280x1024, DVI-I, VGA, 24 VDC (18 to 30 V),1000-nits, 4:3
Varenummer: MON15-MD-T
MON15-MD-T
Produkt information
- Vægt
- 6,100 g
- Materiale
- Metal
- Driftstemperatur
- -40 to 70°C
- Porte
- RS-232/422/485 ports x 1, software-selectable (terminal block)
- IP-Tæthed
- IP66, front IP20, rear
- Luftfugtighed
- 5 to 95% (non-condensing)
- Dimensioner
- 429 x 387 x 75 mm
- I/O
- 1 x DVI-D, 1 x VGA
- Antal farver
- 16.7M (8-bit/color)
- Touch
- Multi touch, 4 points
- Kontrast
- 1000 cd/m2, 700:1, 4:3
- Certifications
- IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV IEC 61000-4-6 CS: 1k V
24" TFT monitor med capacitive touch, IP66, IP20
LED backlight
Capacitive touch (PCAP), 4 points
1280 x 1024
700:1, 1000 nits, 4:3
Visnings vinkel: 160°/140°
1 x DVI-I (29-pin DVI-D connectors female)
1 x VGA (15-pin D-sub connector female)
1 x RS-232 (DB9 male)
1 x Optional RS232/422/485
Forsyning: 100 to 240 VAC, 24 VDC (18 to 30 V)
Desktop, Panel mounting
6,100 g, 429 x 387 x 75 mm
-40 to 70°C
CISPR 32, FCC Part 15B Class A
Optional: RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
Optional: RS-422: Tx+, Tx-, Rx+, Rx-, GND
Optional: RS-485-2w: Data+, Data-, GND
Optional: RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND
