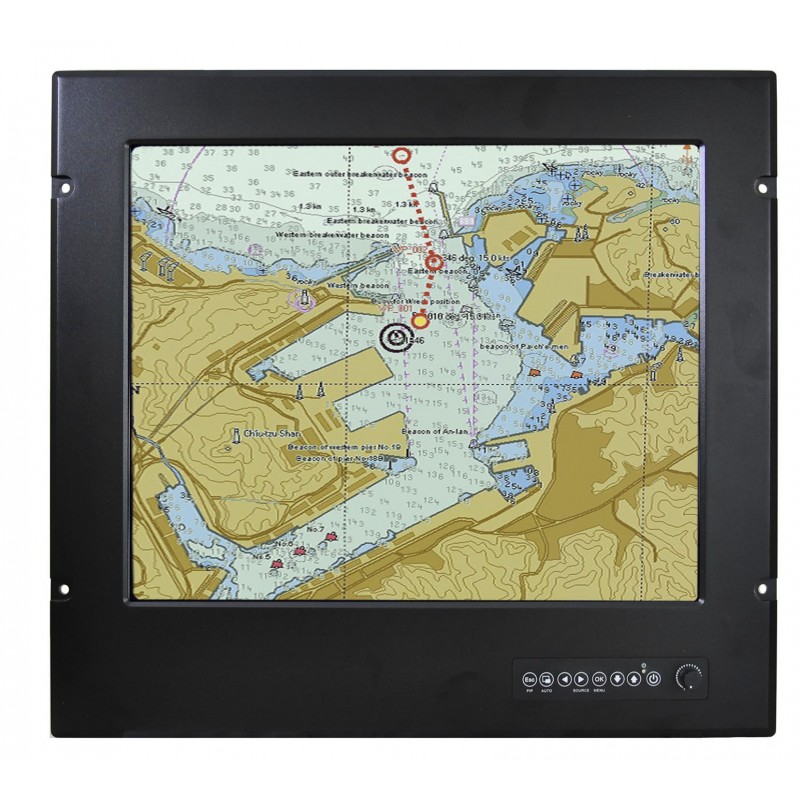

19" DNV Marine godkendt Panel monitor, forsyning 24Vdc, 5:4 format

Varenummer: MON-MAR19"

19" DNV2.4, IEC60945 marine monitor uden touch
400 Nits
IP66
Opløsning: 1280x1024 - 5:4 format
Active display area: 376.32 (H) x 301.06(V) mm
1 x composite (RCA phono)
1 x DVI-D
1 x S-Video (SVHS)
1 x RBG (D-SUB)
Strømforsyning: Terminal blok 24V DC
Montering: Panel (Flush) mount with IP66*, VESA, Bracket mounting
Anti vibration: 5Hz - 500Hz/ 1Grms/3Axis
Anti schock: 15G, 11ms duration
Optional: AC power signal Std IEC Inlet
Optional: Touch screen D-SUB 9P female
Optional: Fjernstyring via RS232 D-SUB 9P

  • Tilføj til sammenligning Fjern fra sammenligning

    • Ring for pris
    0,00 DKK
    Ekskl. moms
    På vej ind
    Antal

    Marine godkendt monitor til panel montage.
    Kan leveres med Touch.
    Andre modeller og størrelser kan leveres kontakt vores salgsafdeling

    MON-MAR19"

    Produkt information

    Vægt
    5.4 Kg
    Udgange
    RGB Signal D-SUB 15P connector(female) Composite Video RCA phono plug S-Video Signal S-Video (SVHS) plug DVI-D Signal DVI-D input 24-pin connector
    Driftstemperatur
    -15 ~ +55°C
    Montering
    Vesa, and stand (stand bracket is option)
    IP-Tæthed
    Front IP66, (saw touch IP54)
    Skærm
    19" Transflective
    OSD
    On Screen Display control (OSD)
    Luftfugtighed
    5% to 95% (non-condensing)
    Strømforsyning
    24Vdc DC Power Signal Screw terminal block
    Indikatorer og kontakter
    LED indicators Power Mode Status LED
    Grafik
    19", Res 1280 x 1024, Pixel Pitch (RGB) 0.294 (H) x 0.294 (V) Contrast Ratio 1000:1 (typ.) Brightness 400 (typ.) Viewing Angle -85~85 (H); -80~80 (V) Active Display Area 376.32 (H) x 301.06 (V) Max Colors 16.7M (8bits/ colors)
    Betjening
    Power On/Off via Front Button, VR Brightness Knob Control
    Chok/Vibration
    Anti-Vibration 5Hz~500Hz / 1Grms/3 Axis Anti Shock 15G, 11ms duration
    Approval
    DNV2.4,IEC60945,IACS-E10,CE,FCC
