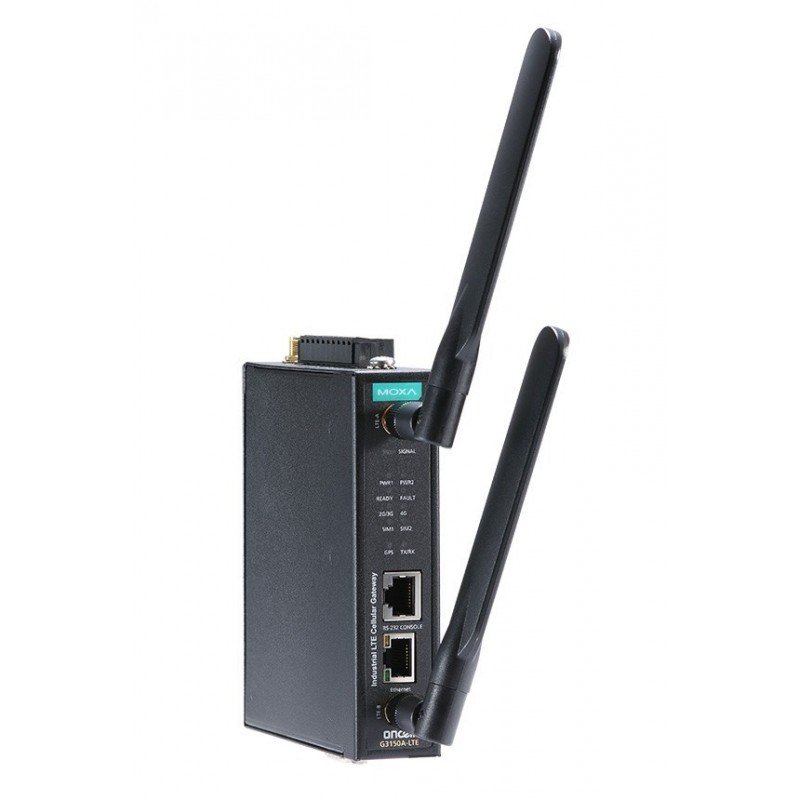

1 port industriel LTE Gateway, RS232 / 422 / 485, 0-55°C, MOXA OnCell G3150A-LTE

Produkt information

Vægt

492 g

Forsyning

12 to 48 VDC

Driftstemperatur

0 to 55°C

Standarder

GSM/GPRS/EDGE/UMTS/HSPA/LTE

Interface

Antenna Connectors: 2 SMA female, MIMO for LTE GNSS: 1 SMA (female), GPS (1575.42 MHz), GLONASS (1602 MHz) Console Port: RS-232 (RJ45). Ground Screw: M5. Reset Button: Power Reset

Stik

Number of Ports 1 Serial Standards RS-232/422/485, software selectable Connector DB9 male

Netværk

LAN: Number of Ports 1 Speed 10/100 Mbps, auto MDI/MDIX Connector 8-pin RJ45

Baudrate

75 bps to 921.6 kbps

Dimensioner

126 x 30 x 107.5 mm

Materiale

Housing Metal, providing IP30 protection

I/O

I/O interface Alarm Contact 1 relay output with current carrying capacity of 1 A @ 24 VDC Digital Inputs 2 electrically isolated inputs• +13 to +30 V for state “1” • +3 to -30 V for state “0”

Protokol

ICMP, DDNS, TCP/IP, UDP, DHCP, Telnet, DNS, SNMP, HTTP, HTTPS, SMTP, SNTP, ARP

Firewall

NAT, port forwarding, IP/MAC/Port filtering

VPN

Encryption: DES, 3DES, AES, MD5, SHA-1, DH2, DH5 Authentication: PSK/X.509/RSA OpenVPN: OpenVPN (Server / Client)Tunnel mode (routing) and TAP mode (bridge) Encryption: Blowfish CBC, DES CBC, DES-EDE3 CBC, AES-128/192/256 CBC NAT-T, PFS, DPD

Anden

RS-232 TxD, RxD, RTS, CTS, DTR, DSR, GND RS-422 Tx+, Tx-, Rx+, Rx-, GND RS-485-4w Tx+, Tx-, Rx+, Rx-, GND RS-485-2w Data+, Data-, GND
