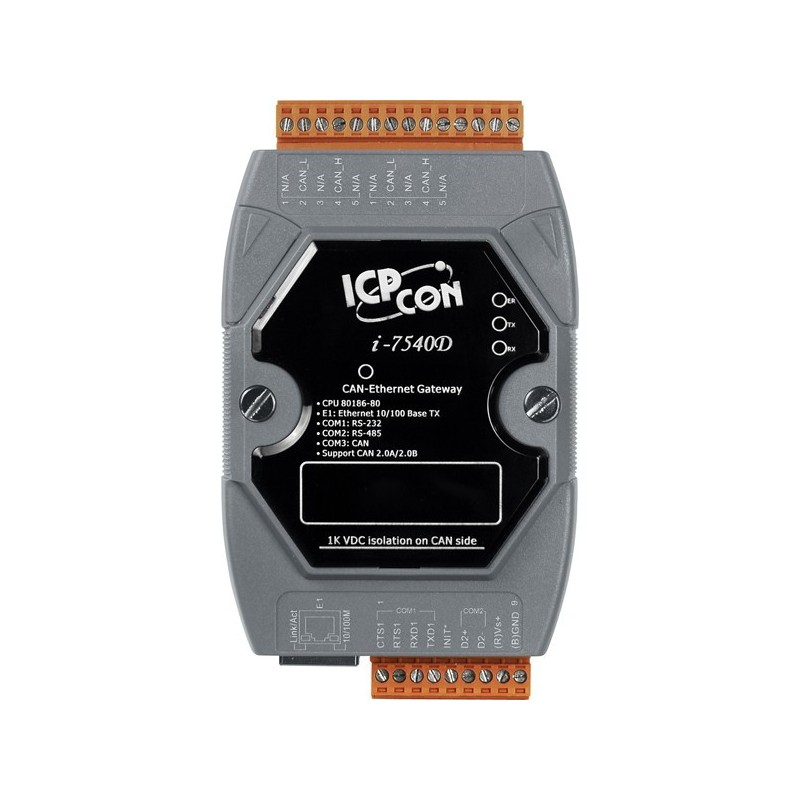

Ethernet til CAN Device Server. CAN til Ethernet gateway. Med 1 x CAN, RS232 og RS485.
Varenummer: M485-ETH-CAN
Internet communication controller med 1 X CAN bus, 1 X RS-232, 1 X RS-485 og 1 X Ethernet
M485-ETH-CAN
2 Varer
Produkt information
- Forsyning
- Power supply Unregulated +10 ~ +30 VDC Protection Power reverse polarity protection, Over-voltage brown-out protection Power Consumption 2.5 W
- Driftstemperatur
- -25 ~ 75 ℃
- Stik
- CAN BUS: 2-pin screwed terminal block. COM 1 Connector 5-pin screwed terminal block (TxD, RxD, RTS, CTS, GND ). COM 2 Connector 2-pin screwed terminal block (DATA+, DATA-)
- Montering
- DIN-Rail
- Isolation
- 1000 VDC for DC-to-DC, 2500 Vrms for photo-couple
- Dimensioner
- (W x L x H) 72mm x 122mm x 33mm
- Controller
- 10/100Base-TX Ethernet Controller (Auto-negotiating, Auto_MDIX) Connector RJ-45 with LED indicator
Internet communication controller med 1 X CAN bus, 1 X RS-232, 1 X RS-485 og 1 X Ethernet
10/100 Base-TX Ethernet controller
TCP/IP protokol
80 MHz CPU
1 x RS-232 port, 1 x RS-485 port og 1x CAN port kan benyttes samtidig
Max transmission speed op til 1M bps for CAN og 115.2kbps for RS-232 RS-485
7-segment LED display
Software konfiguration til CAN and RS-232
Web Konfiguration
Op til 25 Ethernet client tilslutninger
Supporterer Virtual COM
