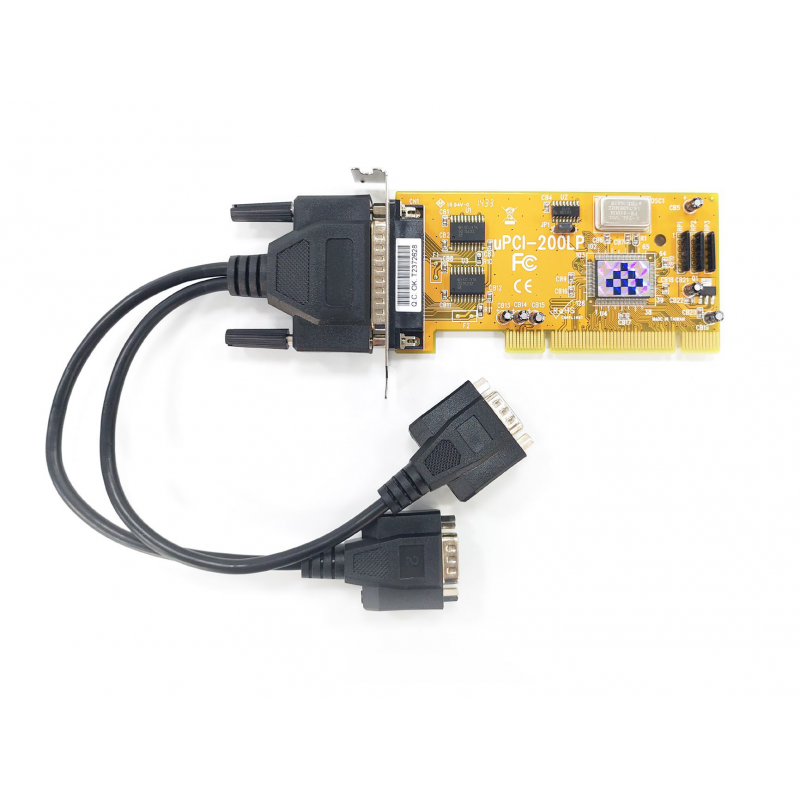

2 x RS232 serielle porte til PCI. Plug & play, høj og lav bagplade, TITAN PCI-200LP UPCI Vscom
Varenummer: SER2PCI3V-L
SER2PCI3V-L serial I/O cards offers two independent RS-232 serial ports. This I/O board support both 3.3V and 5V PCI bus, and it’s compatible with 32-bit PCI, 64-bit PCI and PCI-X bus. All serial ports are built by 16550A-compatible UARTS with 16 byte FIFO.
The supplied drivers for Windows operating system install the serial ports into the Windows API, so they appear as the usual Com ports software requires. A rich set of driver options is configured via the Device Manager in Windows. The drivers allow to configure the serial ports for a bit-rate of up to 921,600 bps.
SER2PCI3V-L
40 Varer
Produkt information
- Stik
- 2 x DB9 han (blæksprutte)
- Porte
- 2
- Chipset
- TITAN BSP9216B
- Baudrate
- Maks. 921,6 Kbit/sekund
- Spænding
- 3,3 og 5 V. kompatibel med PCI-X
- Drivere
- DOS, Windows 98, NT, 2000, XP, Win7, 2003, Linux og Vista
- FIFO
- 16 bytes
- UART
- 16C550
- I/O
- Plug and Play
- RAID niveau
- Universal PCI (5V and 3.3V) 32 bit 33MHz
2 x RS232 seriel porte med plug & play
1 x TITAN BSP9216B (chipset)
1 x DB25 han connector på kortet
1 x DB25 female til to DB9 han adapter kabler inkluderet
Bus: universal PCI (5V og 3.3V) 32 bit 33MHz
RS232 signal: DCD, RxD, TxD, DTR, GND, DSR, RTS, CTS, RI
Maks. bitrate: 921.6kbps
Hver port med 16 bit FIFO for transmit & recieve
IS support: Windows, Linux
0°C to 60°C
