32 kanalers optoisoleret digitale input, 32 kanalers optoisolerede digitale OC-output, PCI
Varenummer: OPTO32I32PCI-I

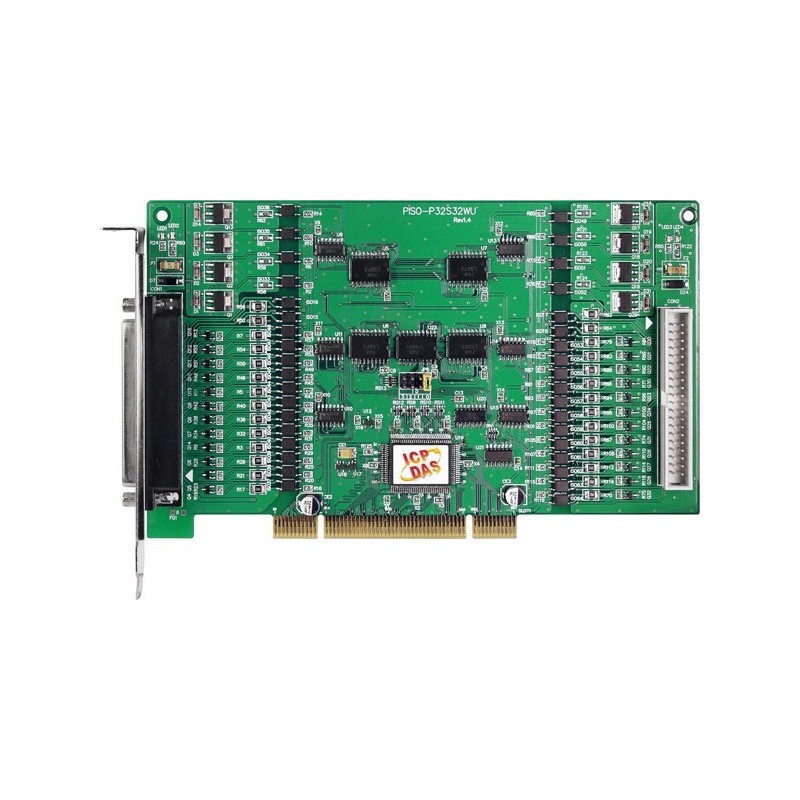

OPTO32I32PCI-I (ICPDAS - PISO-P32S32WU) has 32 channels of optical-isolated DI and 32 channels of optical-isolated open-collector output board (8-channel for 500 mA and 24-channel for 100 mA current sinking output, NPN), arranged into four isolated banks. Each input channel use a photo-coupler to isolate the card and computer from external signal. Each digital output offers a NPN transistor and integral suppression diode for inductive load. OPTO32I32PCI-I requires external power to drive the D/I and D/O ports and supports Card ID (jumper) features for multi-board identification and supports both 5 V and 3.3 V PCI slot.
OPTO32I32PCI-I
Produkt information
- Udgange
- 32 stk. 8 udgange kan drive DC-belastninger op til 500 mA 24 udgange kan drive DC-belastninger op til 100 mA “Open collector” 5 ~ 30 VDC maks. 4 KHz
- Stik
- 1stk. DB37 hunstik og 1 stk. IDC40 hanstik. Adapter fra IDC 40 til DB37 hunstik medfølger. Desuden universal 32 bit PCI-interface til 3,3 eller 5 V PCI-bus
- Isolation
- For ind- og udgange 3750 VDC
- Software
- Drivere til Windows 2000, XP, Vista, WIN7/8/10 og Linux medfølger. Understøtter Borland Delphi, Borland C++ Builder, Visual Basic, C#.NET, Visual Basic.NET og LabVIEW
- Dimensioner
- 105 x 180 mm
- Indgang
- 32 stk. DC-signaler op til 30 V. Logisk 0 fra 0 ~ 1 V. Logisk 1 fra 5 ~ 30 V. Maks. 4 KHz. Alle indgange med enten fælles stel eller plus
8 af de digitale udgange kan trække op til 500mA pr. kanal
32-CH optical-isolated digital input
32-CH optical-isolated digital output
Isolation Voltage: 3750 Vrms (Using external power)
Card ID: Jumper setting for multi-board identification
Open Collector: 8-channel - 500mA, Current Sinking, NPN
Open Collector: 24-channel - 100mA, Current Sinking, NPN
