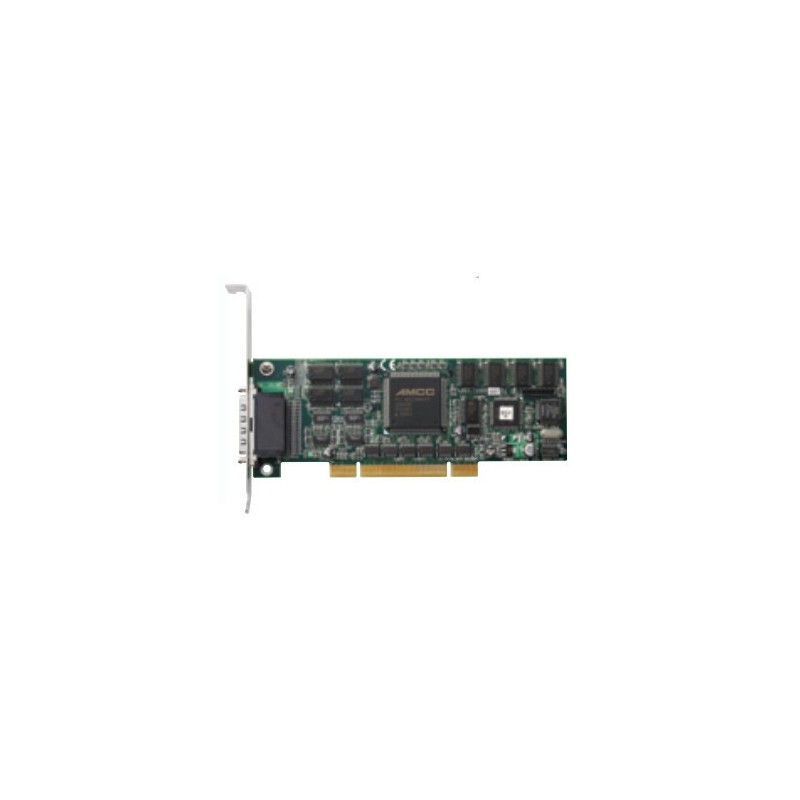

ADLINK LPCI-7200S. 32 kanalers D/I og D/O kort, 12MB/s, PCI, Low profile
Varenummer: DI32O32PCI-L
DI32O32PCI-L (ADLINK LPCI-7200S) is a high-speed digital I/O card. It consists of 32 digital input channels, and 32 digital output channels.
High performance designs and the state-of-the-art technology make this card suitable for high speed data transfer and pattern generation applications.
DI32O32PCI-L performs high-speed data transfers using bus-mastering DMA via 32-bit PCI bus architecture. The maximum data transfer rates can be up to 12 MB per second. Several digital I/O transfer modes are supported, such as direct programmed I/O control, timer pacer control, external clock mode and handshaking mode.
It is very suitable for interfacing high-speed peripherals with your computer system. DI32O32PCI-L supports 3.3 V and 5 V PCI bus with low-profile PCI size. It occupies less space and thus is ideal for book-size computers.
DI32O32PCI-L
2 Varer
Produkt information
- Udgange
- 32 TTL udgange
- Stik
- 2 x VCEN68M
- Software
- Driver til Windows 2000, XP, Win7 og Win8 Labview og Linux medfølger
- Dimensioner
- 98 x 173 mm
- Indgang
- 32 TTL indgange med indbygget FIFO. Understøtter DMA Overfører op til 12 MB pr. sekund
Support a 32-bit 3.3 V or 5 V PCI bus (LPCI-7200S)
32-CH TTL digital inputs and 32-CH TTL digital outputs
Up to 12 MB/s transfer rate
Bus mastering DMA for both digital inputs and outputs
On-board programmable timer pacer clock
Supports handshaking digital I/O transfer mode
Multiple programmable interrupt sources
Compact, low-profile PCI size PCB
