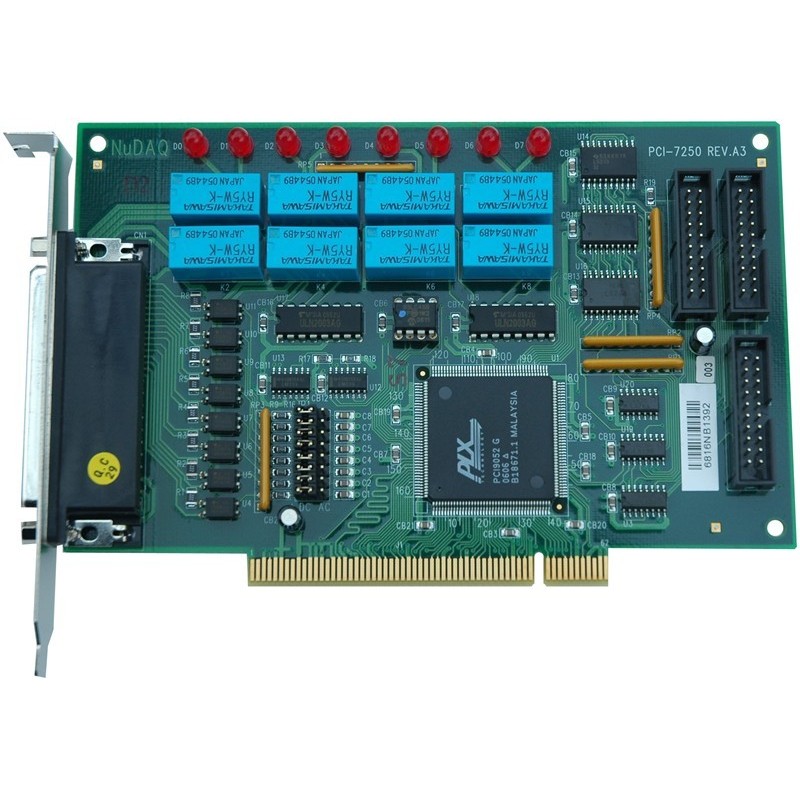

Adlink PCI-7250. 8 kanalers relæ output, 8 kanalers isolerede digitale input, PCI
Varenummer: REL8OPT8PCI
Kan benyttes alene eller sammen med op til 3 stk. REL8OPT8E-PCI, der tilsammen giver 32 relæudgange og 32 optoisolerede indgange. Bemærk at REL8OPT8E-PCI ikke kan benyttes alene. Det fungerer kun sammen med REL8OPT8PCI, da det kræver nogle kontrolsignaler via et fladkabel, der er direkte forbundet mellem disse.
REL8OPT8PCI (ADLINK's PCI-7250) provide 4-CH SPDT (Form C) & 4-CH SPST (Form A) relay outputs and 8-CH isolated digital inputs. The status of each relay output is represented by an onboard LED. When the relay is in SET condition, its corresponding LED will turn ON, and on the contrary, it is OFF. All digital input channels are nonpolarity, optically isolated, and may be set to use RC filter or not. The devices are suitable for collecting digital inputs in noisy environments.
REL8OPT8PCI
Produkt information
- Udgange
- 8 relæer, 4 slutte (form A), 4 skifte (form C) Belastning: 120 VAC/DC 0,5 A / 24 VDC 1 A Skiftetid: Typisk 8 ms
- Stik
- DB37 hun
- Isolation
- 2.500 VDC
- Software
- Drivere til DOS, Windows 2000, XP, Win7 og Win8 Linux og Labview medfølger
- Dimensioner
- 107 x 162 mm
- Indgang
- 8 optoisolerede (PC814). Begge ledere er ført ud for hver indgang ndgangsniveau: Ikke polariseret Logisk 0: 0 – 1,5 VDC Logisk 1: 5 – 24 VDC
Antal af ind- og udgange kan udvides til 32
Supports a 32-bit 5 V PCI bus
8-CH relay outputs
8-CH isolated DI
On-board LED indicators for relay status
On-board relay driving circuits
Relay output stats read back
On-board low-pass filtering for DI
Extendable up to 32-CH relay outputs
