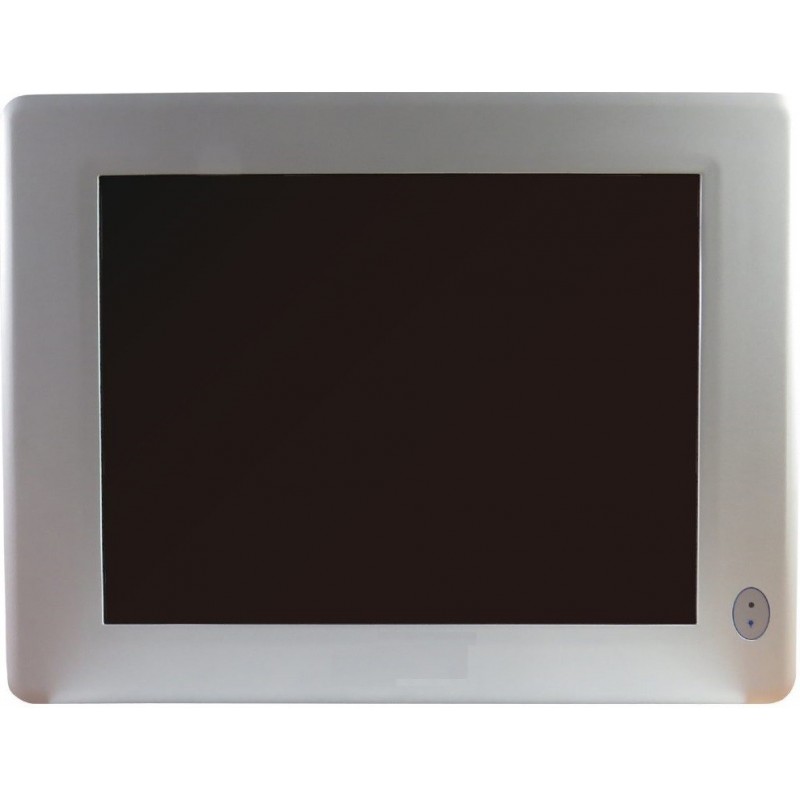

17" Panel PC med touch, Celeron J1900
Varenummer: IPP17N4200
Vi har et stort udvalg af panel PCér. Dette er kun et eksempel.
Vi tilbyder at levere alle Panel PCer komplet med RAM, HDD og OS.
For andre konfigurationer og løsninger kontakt vores salgsafdeling.
IPP17N4200
Produkt information
- CPU
- Intel® Pentium® N4200
- Forsyning
- 9~48VDC via 3-pin Terminal Block
- Udgange
- 1x CDS, 1x VGA, 1x DisplayPort
- Driftstemperatur
- 0°C ~ 50°C / 32°F ~ 122°F (Standard)
- Porte
- 4x RS-232/422/485 with Auto Flow Control Support 5V/12V, DB9
- BIOS
- AMI uEFI BIOS w/ 64Mb SPI Flash
- PoE
- NEED opgrade modul. Not included
- OS SUPPORT
- WIN10
- Antenne
- 4x Antenne holes
- Hukommelse
- 1x DDR3L 1333 SO-DIMM up to 8GB
- Lyd
- Realtek ALC888-GR
- Montering
- Panel Mount, VESA Mount
- IP-Tæthed
- IP65 (Front)
- Luftfugtighed
- 0% ~ 95%
- Ethernet
- 10/100/1000 LAN 2 (RJ-45 on rear, 1x Intel® I210-AT, 1x Realtek RTL8111G)
- USB
- 4x USB 3.0 (Type-A)
- Dimensioner
- 442 x 354 x 58 mm / 17.40″ x 13.94″ x 2.28″ (W x H x D)
- Grafik
- Integrated Intel® HD Graphics 505
- Betjening
- 1x Power LED (on front), 1x Power Switch (on rear)
- Chok/Vibration
- Operating, 1.5 Grms, 5-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-64)
- SIM kort
- 1x SIM Socket
- Storage
- SATA2 1x 2.5″ SATA2.0 HDD / SSD Slot
- Approval
- CE, FCC Class A
- Msata
- 1 (full size)
- mPCIe
- 2x Full-size Mini-PCIe Sockets
- SSD
- 1x 2.5” HDD/SSD Drive Bay (SATA 3.0)
17″ TFT LCD Display
TouchScreen
Intel® Bay Trail Processors, Celeron® J1900
Intel® HD Graphics
IP65 approved front bezel
2x GbE, 2x COMs, 4x USB 2.0, 1x USB 3.0, 1x Mini-PCIe slot
HDMI, VGA, HD Audio
Fanless design
