17" Panel PC med stål front, til 4.gen Intel Core i3/i5/i7

Varenummer: IPP17-I8+PCIEX

17" TFT-LCD
resistive touch
4th Generation Intel Core i3/i5/i7 Panel PC
2 x DDR3 1066/1333/1600MHz SO-DIMM, up to 16GB System Memory
Intel Q87
Fanless Design
Support 1 x PCIe x16
Wide range DC 11~32V Power Input

Ring for pris

0,00 DKK
Ekskl. moms
På vej ind
Antal

Kan leveres komplet med CPU, SSD , RAM og OS. kontakt vores salgsafdeling vedr. løsninger.

IPP17-I8+PCIEX

Produkt information

Vægt
7.6Kg
Forsyning
DC 9~36Vdc
Porte
1xDB9 RS232, 1xDB9RS232/422/485, 1x RS422/485
OS SUPPORT
WIN 7, Windows 8.1, Windows 10 IOT Enterprise
Lyd
1 x Mic-in, Line-out
IP-Tæthed
Front IP 66
Skærm
LCD Size 17" TFT-LCD Max. resolution 1280 x 1024 Max. color 16.7M Luminance(cd/m²) 350 Viewangle(H°/V°) 170 (H) / 160 (V) Contrast 1000: 1 Backlight lifetime(hrs) 30,000 hrs
Temperatur
Operating temperature(°C) 0~50°C Storage temperature(°C)
Luftfugtighed
10 to 90% @ 40°C, non- condensing
Ethernet
2 x GbE LAN RJ-45
USB
4 x USB 3.0 Type A, 2 x USB 2.0 Type A by cable (option)

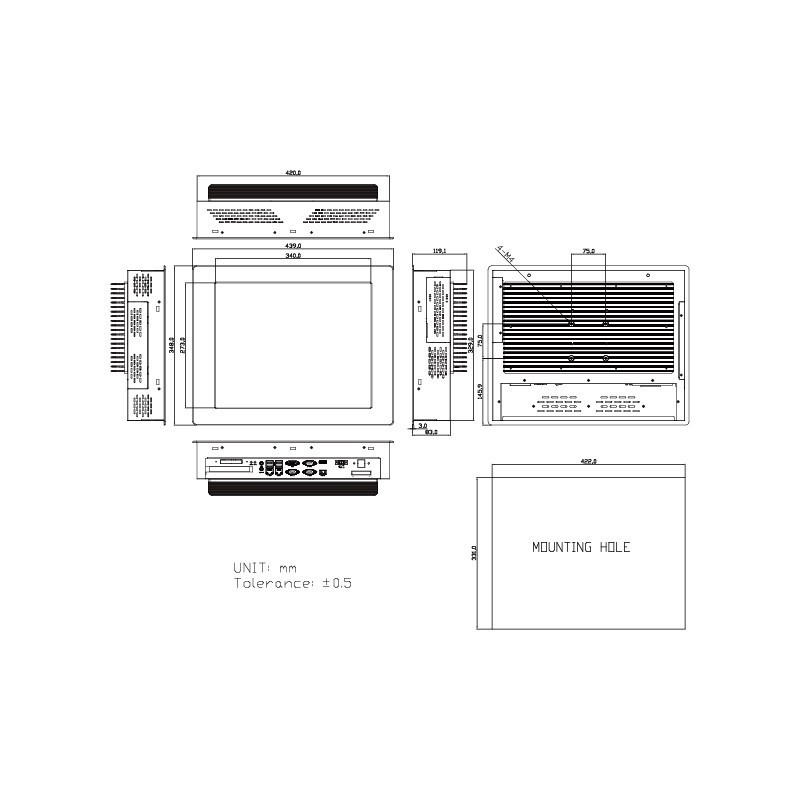

Dimensioner
439x348x95mm
Touch
Touch Type Resistive Touch Screen/Projected Capacitive Touch Screen Interface USB Light transmission(%) Over 80%(Resistive) / Over 90%(Projected Capacitive)
Approval
CE / FCC Class A
SSD
2x2.5" HDD/SSD
