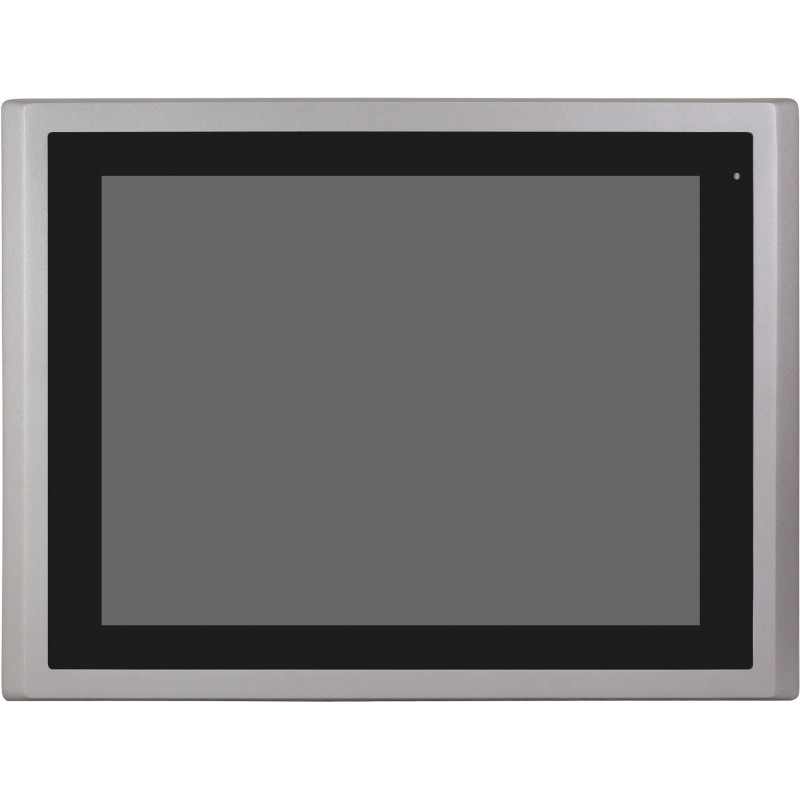

15" panel PC 4 th Gen. i3 / i5 (option) processor med Touch IP65 front

Varenummer: IPP15I3

Build To Order
15" TFT-LCD
CPU i3 (i5 option)
Max. res. 1024 x 768
Touch  projected Capacitive Touch
4GB DDR4 RAM (Max. 16GB)
2 x USB
2 x RJ45 Lan
1 x RS232/422/485, 1 x RS232
IP65 front
OS support: Win. Embedded Compact 7,
Win 7 /  7 Pro, Win 7 Ultimate, Win Emb. 8.1 Industry Pro
Windows 10 IoT

Ring for pris

0,00 DKK
Ekskl. moms
På vej ind
Antal

Panel PC med Core i3 CPU. Oprion i5 CPU. kontakt salg.
Kan leveres komplet med OS , RAM og SSD.
- Kontakt vores salgsafdeling for priser og mere information.

IPP15I3

Produkt information

CPU
Onboard Intel 4th Gen. Core i3 CPU (option i5)
Andet
Optioner: 2 x CAN 2 x USB 2.0 type A + 1 x Mini-PCIe slot + 1xRS-232 DB-9 via TB-528C1U2P1, 2 x USB 2.0 type A , UPS battery 21W/10.8V/1.95Ah
OS SUPPORT
Windows Embedded Compact 7, Windows Embedded Standard 7, Windows 7 Pro (FES) Windows 7 Ultimate (FES), Windows Embedded 8.1 Industry Pro, Windows 10 IoT
Forsyningsspænding
DC 9~36V 1 x 3-pin DC Power input terminal / 1 x 2-Pin Power Switch
Seriel port
1 x DB9 RS232/422/485, 1 x RS232 DB9
Luftfugtighed
10 to 90%@ 40˚C, non-condensing
Ethernet
2 x GbE LAN RJ-45
USB
2 x USB 3.0 type A
Dimensioner
410mm x 310mm x 54.7mm
LCD
15" TFT-LCD Max. resolution 1024 x 768 Max. color 16.7M Luminance(cd/m²) 420 Viewangle(H°/V°) 160/160 Backlight lifetime(hrs) 50,000
Audio
1 x Audio Line Out
Arbejdstemperatur
temperature(°C) 0~50˚C, -20~60°C (option)
Montage
Panel Mounting / VESA 100 x 100
Touch
Projected Capacitive Touch, USB
System Memory
Onboard 4GB DDR 3L 1600 MHz / max 8GB
Storage
1 x 2.5" SATA Bay, 1 x SD card slot max. 32GB
