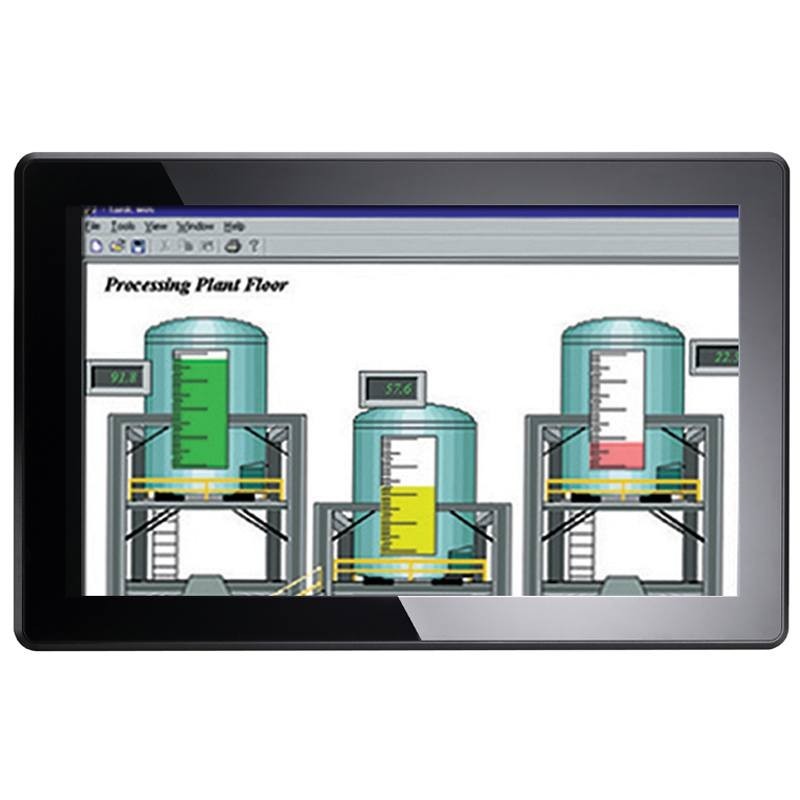

21.5" TFT Fanless Multi touch panel PC VESA mount eller panel montage

Varenummer: IPP21.5IX

21.5" FHD projected capacitive multi-touch screen
Fanless design with LGA1150 socket 4th gen Intel® Core™ i7/i5/i3, Pentium® Celeron® processor (Haswell)
2.5" 7/9.5 mm SATA HDD, CFast™ and mSATA
2 Gigabit LAN,
2 USB 3.0
2 USB 2.0
2 COM ports
IP65 flat front bezel and rugged design
Supports panel mount and optional VESA arm/desktop stand/wall mount
2 PCI Express Mini card slots

  • Tilføj til sammenligning Fjern fra sammenligning

    • Ring for pris
    0,00 DKK
    Ekskl. moms
    På vej ind
    Antal

    Vi har mange års erfaring i industrielle panel PCér. Vi tilbyder andre modeller og løsninger.

    Kontakt vores salgsafdeling.

    IPP21.5IX

    Produkt information

    Vægt
    8.1Kg
    CPU
    LGA 1150 4. Gen Celeron i3,i5,i7 support up to 45W
    Forsyning
    19 VDC, 112Watt
    Driftstemperatur
    0 to 40 degrees
    Porte
    2 x RS232/422/485 (COM1/2)
    Chipset
    Intel H81
    BIOS
    AMI UEFI BIOS
    Watchdog
    255 levels, 0 to 255 sec.
    OS SUPPORT
    WE8S, WES 7 Windows 10 IOT, Windows 8.1 win 7 windows 10
    Hukommelse
    1 x 204 DDR3 1333/1600 up to 8GB
    USB
    2xUSB3.0, 2xUSB2.0
    Dimensioner
    547.6 x 89 x 339 mm
    PCI
    2 x PCI express MINI card slot
    Grafik
    Intefrated Intel HD graphics
    Touch
    Multi touch Capacitive
    CF Card
    1x CFast card slot
    Certifications
    CE
    SSD
    1 x 2.5" 7/9.5mm SATA HDD Space
    WiFi/WLAN
    OPTION! Contact sales
