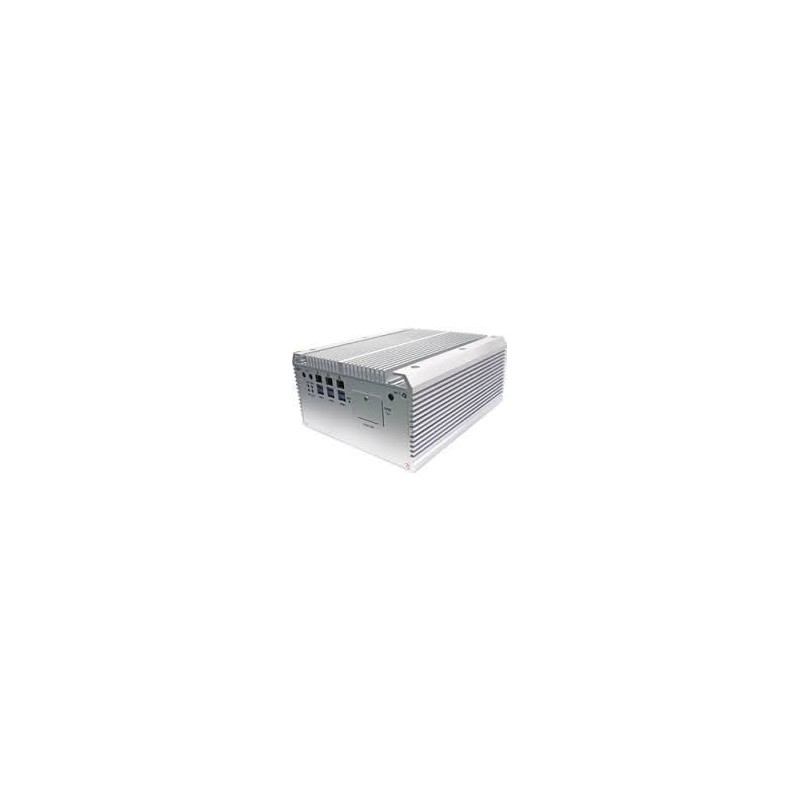

Industriel BOX PC med 2 x PCIex udvidelse. Intel i7/i5/i3 Haswell
Varenummer: IPC-I5-2PCIEX
"Build To Order" leveres med ønsket CPU, RAM og Harddisk. Kontakt salgsafdelingen vedr. levering.
Andre modeller og løsninger kan tilbydes.
IPC-I5-2PCIEX
Produkt information
- Vægt
- 7 kg (15.43 lb)
- CPU
- 4th Generation Intel® Core™ i7/i5/i3 or Haswell Processor in LGA1150 socket
- Forsyning
- DC 9~36V input w/ 4-pin terminal block
- Driftstemperatur
- -20 ~ 55°C (-4 ~ 131°F), ambient w/ air flow
- Porte
- COM1/ COM2 RS-232/422/485 Selectable COM3/COM4 RS-232
- Strømforbrug
- Max.75W( w/o I/O Card)
- Chipset
- Intel® Q87
- Netværk
- 3 x RJ45, 1 x Intel® i217LM GbE PHY w/ iAMT 2 x Intel® i210IT GbE
- Watchdog
- 1~255 levels reset
- OS SUPPORT
- W7 Pro / WS7E / WE8 STD
- SATA
- 2 x Serial ATA ports with RAID 0/1 support
- Hukommelse
- 2 x 204-pin DDR3 SO-DIMM sockets, supporting 1600MHz SDRAM up to 16GB
- Montering
- Wall-mount
- Luftfugtighed
- 10 ~ 95% @ 55°C (non-condensing)
- USB
- 6 x USB 3.0/ 2.0 ports Internal USB dongle ( Optional)
- Dimensioner
- 225 x 267 x 120 mm
- Materiale
- Aluminum alloy
- I/O
- 1 x DB25 connector for 1 x DIO (8 in/8 out) port or 1 x LPT port (either one) DIO by default, can be changed to LPT
- Grafik
- Integrated Intel® HD 4600 2 x DisplayPort female connector for Digital Video output 1 x DVI-I female connector for Digital/Analog Video output
- Ledige Slots
- 1 x PCIe x 16 slot1 x PCIe x8 slot (via x 4 lanes)
- Chok/Vibration
- Vibration 3 Grms/5~500Hz/random operation w/ SSD Shock Operating 40G (11ms), Non-operating 60G with SSD
- Storage
- 2 x 2.5” drive bays 1 x outside accessible CFast socket
Fanless Design
Wide Range DC Power Input (9~36V)
iAMT supported
Triple Independent Displays (DVI-I + DisplayPort*2) supported
Optional WiFi or HSUPA Wireless Connectivity supported
Rugged Design for Shock / Vibration Protection Memory Support up to 16GB (DDR3)
RAID 0,1 Supported
