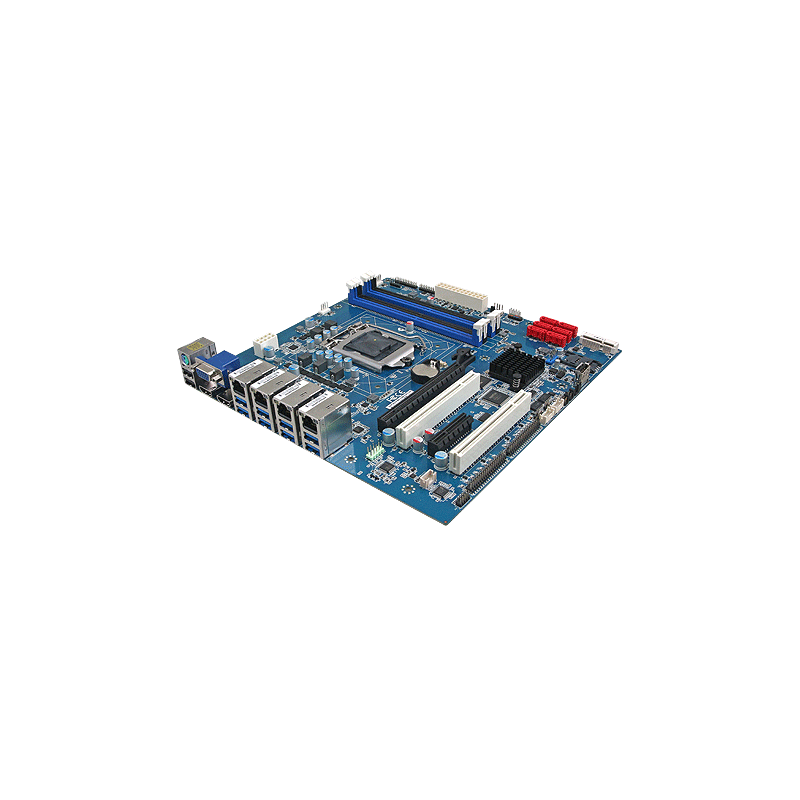

Micro ATX bundkort Intel C236, 2 x PCIex, 2 x PCI, 8 x RS232, 2 x RS232/422/48513 x USB

Varenummer: BK1151-MITX-GEN67

Intel® 6 / 7th Generation Core ™ -proces (Max TDP ved 95W)
Intel® C236 Chipset
4 x 288-pin DDR4 2400MHz DIMM understøtter op til 64 GB (ECC-hukommelse understøttet af CPU)
1 x VGA, 2 x HDMI 1.4
1 x Fuld størrelse Mini PCI-e support SATA / PCI-e x1 2.0 signal) med SIM-kortspor
1 x PCI-e x 16, 1 x PCI-e x 4, 2 x PCI
5 x USB2.0, 8 x USB 3.0
8 x RS232
2x RS232/422/485
Support RAID 0, 1, 5, 10
Indbygget Infineon SLB9665
support TPM 2.0ATX Power

  • Tilføj til sammenligning Fjern fra sammenligning

    • Ring for pris
    0,00 DKK
    Ekskl. moms
    Sidste elementer på lager
    Antal

    Super kompakt Micro ATX bundkort med PCI-ex og PCI udvidelse. Andre modeller og løsninger kan tilbydes.

    BK1151-MITX-GEN67
    1 Enhed

    Produkt information

    Vægt
    0.6 Kg
    CPU
    Intel® LGA1151 Socket Supports 6/7th Generation Core™ / Intel® Xeon®Process E3-1200 v5/6 Family (Workstation) / Intel® Pentium® / Celeron ®Processors (Max. TDP at 95W)
    Forsyning
    +12V/+5V/5VSB/+3.3V/-12V
    Udgange
    Multiple Display Triple Displayor, 2 x HDMI, 1 x VGA (HDMI 1,4)
    Opløsning
    VGA: 2048 x 1536 @ 50Hz HDMI 1.4: 4096 x 2160 @ 24Hz, 2560 x 1600@60Hz
    Driftstemperatur
    0~60°C (32~140°F)
    Porte
    8 x RS232 by 2 x 40pin pin header 2 x RS232/422/485
    Chipset
    Intel® C236 Chipset
    Watchdog
    H/W Reset, 5~255 seconds/5~255 minutes
    SATA
    6 x SATA III
    Hukommelse
    4 x 288-pin DDR4 2400MHz DIMM supports up to 64GB
    Lyd
    Chipset Realtek ALC662 HD Audio Decoding Controller Audio Interface Line-in, Mic-in, Line-out by Front Audio Audio Amplifier 2 x 3W Amplifier
    Tastatur/mus
    1 x PS/2 Keyboard or 1 x PS/2 Mouse
    Ethernet
    Ethernet LAN Port 4 x RJ-45 Chipset 1 x Intel® I219LM Gigabit Ethernet PHY, 3 x Intel® I211AT PCI-e Gigabit
    USB
    5 x USB 2.0 8 x USB 3.0
    Digital I/O
    1 x 16-bit GPIO
    Dimensioner
    (L x W) 9.6" x 9.6" (243.84mm x 243.84mm)
    PCI
    1 x PCI-e x 16 1 x PCI-e x 4
    Grafik
    Chipset Intel® 7th Generation CPU integrated HDMI + HDMI, HDMI + VGA, VGA + HDMI
    SIM kort
    1 x SIM card slot
    mPCIe
    1 x Full Size Mini-PCIe supports SATA/PCI-ex1 2.0 signalMicro ATX Board
    TPM
    Onboard Infineon SLB9665 support TPM 2.0
    Anden
    ACPI Single power ATX Support S0, S3, S4, S5 Power Type AT/ATX
