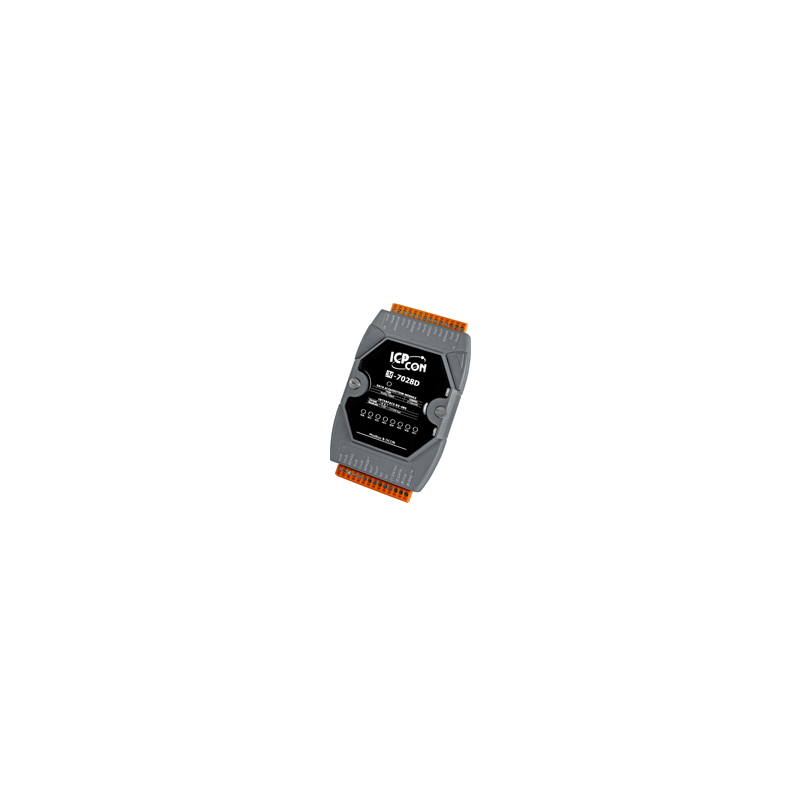

8 analoge udgange 0-5V, 0-10V, 0-20mA, 12 bit, RS485, MODBUS, 10-30VDC
Varenummer: MOD485-DA8-I
12-bit, 8-channel analog output modbus module.
It provides a programmable output range on all analog output channels (0 ~ 5 V, +/-5 V, 0 ~ 10 V, +/-10 V, +4 ~ +20 mA or 0 ~ +20 mA).
Each analog output channel can be configured for an individual range
and the module also features per-channel open wire detection for the +4 ~ +20 mA output,
together with 8 kV ESD Protection as well as 3000 VDC intra-module isolation.
Options for configuring power-on and safe values are also included.
MOD485-DA8-I
Produkt information
- Udgange
- 0 ~+5 VDC ±5 VDC 0 ~ +10 VDC ±10 VDC 0 ~ +20 mA +4 ~ +20 mA
- Opløsning
- 12-bit
- Driftstemperatur
- -25 ... 75 °C
- Interface
- RS485
- Baudrate
- 1200 to 115200 bps
- Output
- +10 ~ +30 VDC
- Luftfugtighed
- 10 to 95% RH, Non-condensing
- Isolation
- 3000 VDC
- Dimensioner
- 123 mm x 72 mm x 35 mm
- Indgangsimpedans
- 500 Ω
- Protokol
- Modbus RTU, DCON
- Installation
- DIN-Rail or Wall Mounting
- Anden
- +/-35 VDC Overvoltage Protection
8 kanals analog output module, Modbus protokol
Source type strøm udgang
8 x 12-bit analog udgange
Individuel kanal konfiguering
kabelbrud detektering ved 4-20mA
8 kV ESD Protection
Power-on værdi programmering
Sikkerheds værdi programmering
Temperatur -25 til +75°C
