8 analoge indgange, op til +/-10V, 16 bit, MODBUS RTU, RS485 bus
Varenummer: MOD485-IO8AI

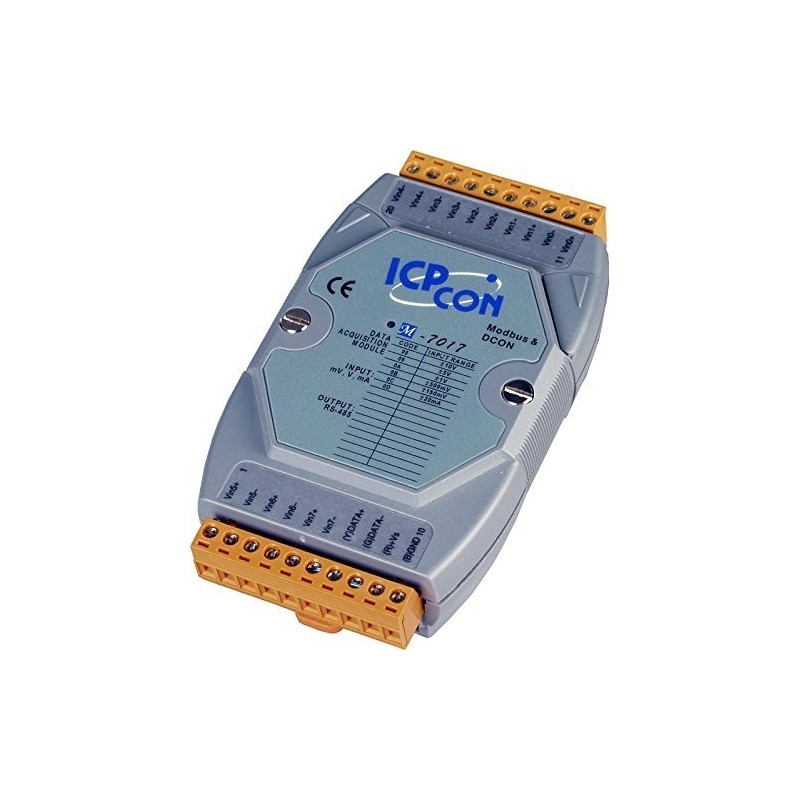

Modbus 8 Channel Data Aquisition Module
MOD485-IO8AI M-7017 is an analog input module that provide 8 differential input channels. The input type includes both voltage and current, and all channels are available for the same input range. An optional external 125 Ω resistor is required for current input. The modules also feature 3000 VDC intra-module isolation as well as +/-120 VDC overvoltage protection. The M-7017 supports both the Modbus RTU and DCON protocols, which can be configured via software, and provides 8 differential analog input channels.
MOD485-IO8AI
Produkt information
- Opløsning
- 16-bit
- Driftstemperatur
- -25C to 75C
- Interface
- RS-485
- Baudrate
- 1200 ~ 115200 bps
- Input
- +/-150 mV, +/-500 mV, +/-1 V, +/-5 V, +/-10 V, +/-20 mA 0 ~ 20 mA, 4 ~ 20 mA (requires optional external 125 Ω resistor)
- Output
- 10 ~ 30 VDC
- Luftfugtighed
- 10 ~ 95% RH, Non-condensing
- Isolation
- 3000 VDC
- Indgangsimpedans
- 20 MΩ
- Protokol
- Modbus RTU, DCON
- Installation
- DIN-Rail or Wall Mounting
- Anden
- +/-35 VDC Overvoltage Protection
ANALOGT INPUT MODUL TIL MODBUS
8 kanals differential analog indgang
Spænding og strøm indgang (husk shuntmodstand på 125 ohm)
+/-120 VDC overspændings beskyttelse
16bit opløsning
Open Wire detektering på 4 ~ 20 mA
3000 VDC Isolation
Dual Watchdog
Udvidet temperaturområde: -25°C ~ +75°C
