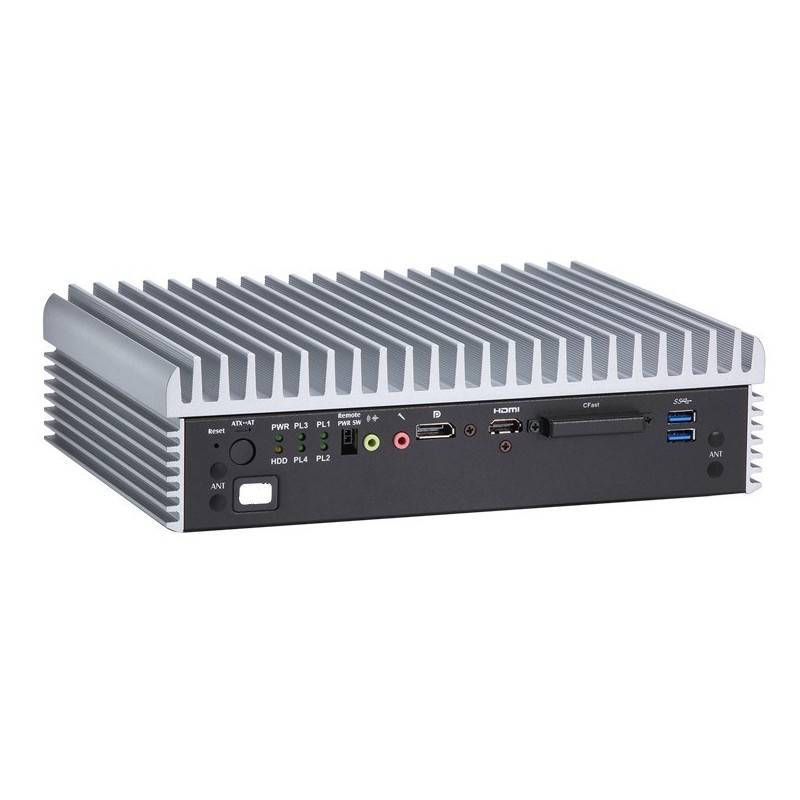

Embedded PC i3/i5/i7, Celeron, 2 x HDMI, 1 x DP, 4xGbit, 6 USB 6th/7th Gen. CPU
Varenummer: EPC-IX-GEN7
Build To Order
Vi kan levere med fuld bestykning.
Kontakt salg vedr. pris på komplet konfiguration af PC.
Andre modeller haves.
EPC-IX-GEN7
1 Enhed
Produkt information
- Vægt
- 3.8 kg (8.37 lb)/ 4.6 kg (10.14 lb)
- CPU
- LGA1151 socket 7th/6th gen Intel® Core™ i7/i5/i3 & Celeron® processor (CPU TDP max. up to 35 W)
- Forsyning
- 9~36VDC
- Udgange
- 2 x HDMI (1 x HDMI 2.0 & 1 x HDMI 1.4b) 1 x DisplayPort
- Driftstemperatur
- -40°C ~ +60°C (-40°F ~ +140°F) (with W.T. SSD, CPU TDP 35W)
- Porte
- 4 x RS-232/422/485
- Watchdog
- 255 levels, 1 ~255 sec.
- OS SUPPORT
- WE8S, WES7, Win10 IoT, Linux
- Hukommelse
- 2 x 260-pin SO-DIMM DDR4-2133, up to 32 GB
- Lyd
- Mic-in/Line-out
- Montering
- OPTION: Wall mount DIN-rail VESA mount not included
- IP-Tæthed
- IP40
- Ethernet
- 4 x 10/100/1000 Mbps (Intel® i210IT, i219LM)
- USB
- 6 x USB 3.0 2 x USB 2.0
- Digital I/O
- 32-channel programmable DI/DO
- Dimensioner
- 280 x 190 x 70 mm (11.02” x 7.48” x 2.75”)
- Materiale
- Aluminum extrusion and heavy-duty steel
- Chok/Vibration
- 3 Grms with CFast™ (5 - 500 Hz, X, Y, Z directions)
- Udvidelser
- 2 x Full-size PCI Express Mini Card (USB + PCI Express signal) 1 x SIM slot
- Storage
- 2 x 2.5" SATA HDD with RAID 0&1 1 x CFast™ 1 x mSATA
- Anden
- 4 x SMA type connector opening for antenna 1 x 9~36VDC power input connector 1 x ATX power switch 1 x Remote power switch 1 x AT/ATX quick switch 1 x Reset button
6th/7th Gen. i3/i5/i7 cpu support
Max. 32GB RAM
4x RS232/422/485
6x USB 3.0
2x USB2.0
2x 2.5" SATA HHD (RAID0/1 support)
9-36VDC
