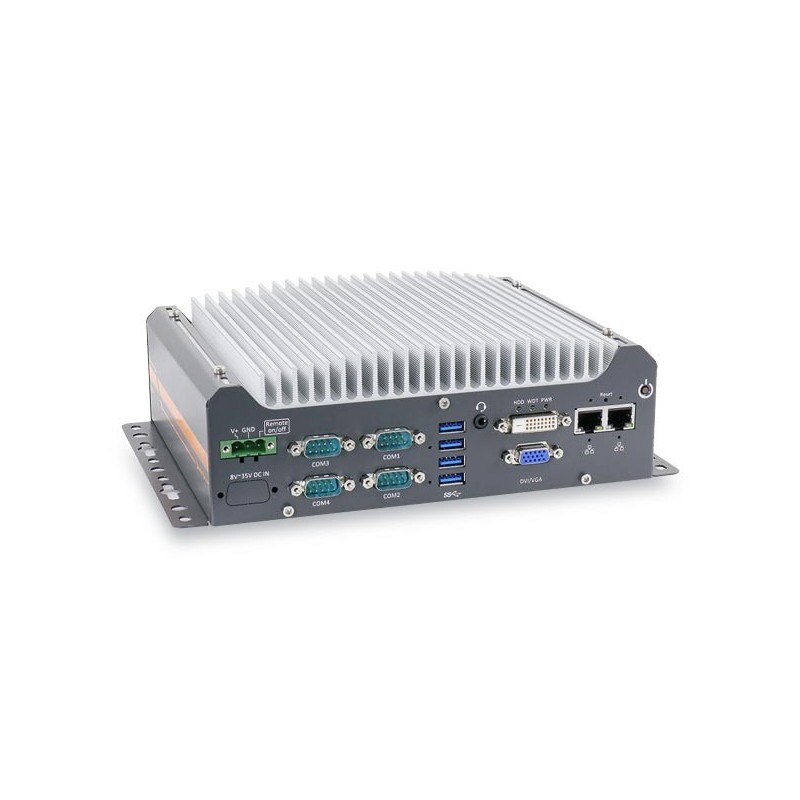

Intel® 9th / 8th -Gen Core ™ i7 / i5 / i3 Kompakt Fanless Computer med 2x GbE og 4x COM-porte
Varenummer: EPC-IXGEN9
IPC-IXGEN9 er en omkostningseffektiv, kompakt og alligevel kraftfuld blæserløs embedded computer. Drevet af en Intel® 9th / 8-Gen Core ™ hexa / octa core CPU, det giver mere end 50% beregning ydeevne forbedring i forhold til den forrige generation.
EPC-IXGEN9 er designet til at være enkel og kompakt. Den er udstyret med I / O'er såsom 2x GbE, 4x USB3.0 og 4x COM porte til fælles industrielle applikationer. Ud over den M.2 2280 SATA spalte (SATA signal) og kan også understøtte en 2,5" SSD / HDD eller en 3,5" HDD. Som option kan man få den med isoleret DIO og isoleret COM, der kan beskytte mod jordsløjfer i barske miljøer.
PG
EPC-IXGEN9
2 Varer
Produkt information
- Vægt
- 2.68Kg
- CPU
- Supporting Intel® 8th/ 9th-Gen Core™ CPU (LGA1151 socket) - Intel® Core™ i7-8700*/ i7-8700T/ i7-9700E*/ i7-9700TE - Intel® Core™ i5-8500*/ i5-8500T/ i5-9500E*/ i5-9500TE - Intel® Core™ i3-8100*/ i3-8100T/ i3-9100E*/ i3-9100TE
- Udgange
- 1x VGA connector, supporting 1920 x 1200 resolution 1x DVI-D connector, supporting 1920 x 1200 resolution
- Driftstemperatur
- -25°C ~ 60°C For sub-zero operating temperature, a wide temperature HDD or Solid State Disk (SSD) is required.
- Porte
- 2x software-programmable RS-232/ 422/ 485 ports (COM1/ COM2) 2x RS-232 ports (COM3/ COM4)
- Chipset
- Intel® H310 platform controller hub
- OS SUPPORT
- WIN 7 (32/64-Bit) WIN 8/8.1, WIN 10, WIN 10 IOT
- Hukommelse
- Up to 32 GB DDR4 2666/ 2400 SDRAM (one SODIMM slot)
- Lyd
- 1x 3.5 mm jack for mic-in and speaker-out
- Montering
- Wall Mount or Optional DIN Rail
- Luftfugtighed
- 10%~ 90% , non-condensing
- Ethernet
- 2x Gigabit Ethernet ports by I219 and I210
- USB
- 4x USB 3.1 Gen1 (5 Gbps) ports
- Strømforsyning
- 1x 3-pin pluggable terminal block for 8~35VDC DC input
- Digital I/O
- OPTIONAL ! Contact sales
- Dimensioner
- 255mm (W) x 173 mm (D) x 76 mm (H)
- Grafik
- Integrated Intel® UHD Graphics 630
- Chok/Vibration
- Vibration Operating, MIL-STD-810G, Method 514.6, Category 4 Shock Operating, MIL-STD-810G, Method 516.6, Procedure I, Table 516.6-II
- Storage
- 1x internal SATA port for 3.5" HDD or 2.5" HDD/ SSD, 1x M.2 2280 SATA interface
- Approval
- CE/FCC Class A, according to EN 55032 & EN 55024
- mPCIe
- 1x full-size mini PCI Express socket
- M.2
- 1x M.2 2242 B key socket with internal SIM socket
- Anden
- Remote Ctrl. & LED Output 1x 10-pin (2x5) pin header for remote on/off control and status LED output
Compact 255 x 173 x 76 mm footprint
Intel® 9th/ 8th-Gen Core™ 35W LGA1151 CPU
Rugged, -25°C to 60°C fanless operation
2x GbE and 4x USB3.0
2x RS-232/422/485 and 2x RS-232 ports
VGA + DVI dual display outputs
Supports 1x M.2 2280 SSD (SATA signal)
Supports 1x 3.5" or 2.5" SATA HDD/ SSD
