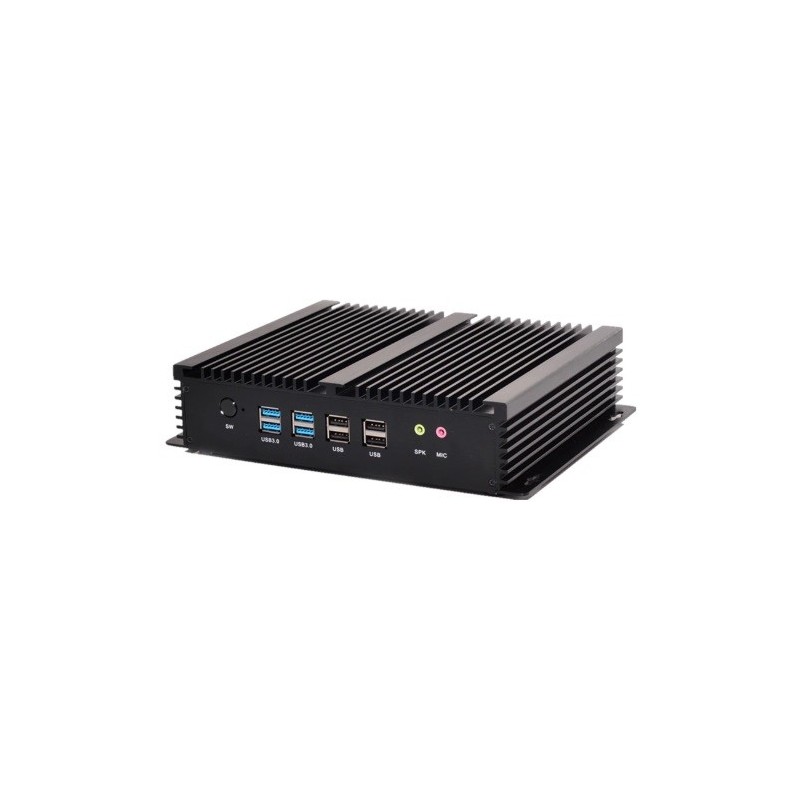

Embedded Fanless PC Celeron 2x HDMI, 6 x RS232, 8 x USB VGA Windows Windows 7/Windows 8/Windows 10/Linux
Varenummer: EPC-CEL-2G6S2H
Kompakt industriel blæserløs PC. Vi tilbyder at levere den komplet med SSD, RAM og OS installleret.
Vi tilbyder andre modeller.
EPC-CEL-2G6S2H
4 Varer
Produkt information
- Vægt
- 1.8KG
- Materiale
- Aluminium housing
- CPU
- Intel Celeron 2955U
- Forsyning
- 12vdc JACK connector 1 inner diameter 2.5mm,external diameter 5.5mm
- Udgange
- VGA + HDMI DUAL support
- Driftstemperatur
- 0-50 Centigrade
- Porte
- 6 x RS232
- Strømforbrug
- TDP 15W
- Chipset
- Intel QS77 Express High Speed Chipset
- BIOS
- AMI BIOS, ACPI supported, Support call on function automatically
- OS SUPPORT
- Windows 7/Windows 8/Windows 10/Linux
- SATA
- 1 x SATA3.0 slot for SATA HDD or SSD, support 6Gb/s
- Hukommelse
- 1 x SO-DIMM DDR3L Slot Support 2GB/4GB/8GB DDR3L 1333/1600, LPDDR3 1333/1600
- Lyd
- ALC892 HIFI sound chip, 6-channel
- Montering
- 4 Mounting holes on case
- Luftfugtighed
- 10%-85%
- Ethernet
- 2xRJ45 Gbit Intel 82583V/82574L PCI-E Gigabit Ethernet NIC 10/100/1000 BaseT LAN
- USB
- 4* USB 3.0 ports; 4* USB 2.0 ports
- Dimensioner
- 234*150*50 mm
- Grafik
- Intel® HD Graphics 4400
- SIM kort
- 1 x embedded SIM card slot onboard(optional)
- Msata
- 1 x M-SATA3.0 slot for MSATA SSD, support 6Gb/s
- Anden
- PXE boot
- WiFi/WLAN
- OPTION ! not included
Fanless
Intel Celeron 2955U
Chipset Intel QS77 Express High Speed Chipset
RAM: 1 x SO-DIMM DDR3L 1333/1600, LPDDR3 1333/1600 MAX. 8GB
Intel® HD Graphics 4400 1920 x 1080 HD
2 x RJ45 Intel GBit
2 x HDMI
4 x USB 3.0
4 x USB 2.0
6x RS232
WIFI: OPTION !
Forsyning DC12
234*150*50MM
Support : Windows 7/Windows 8/Windows 10/Linux
