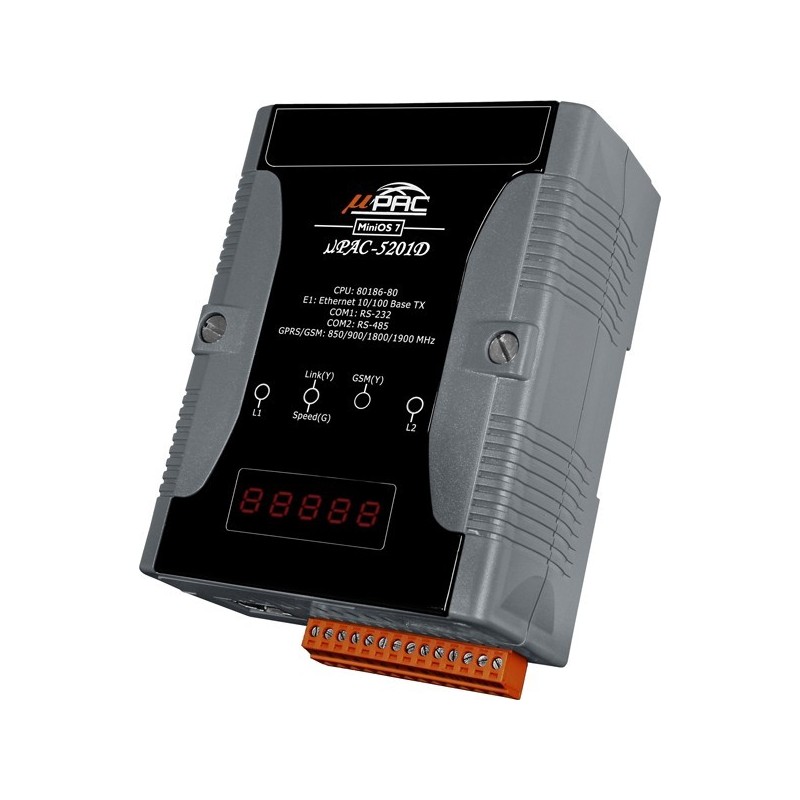

ICP DAS UPAC-5201D. Embedded PC med MiniOS7, GSM/SD læser, datalogning
Varenummer: M485-PC-ETH-G-I
M485-PC-ETH-G-I
1 Enhed
Produkt information
- CPU
- 80186, 80 MHz
- Forsyning
- 12-48VDC, 2,5W
- Driftstemperatur
- -25 ~ +75°C
- Porte
- EthernetRJ-45 x 1, 10/100 Base-TX, COM 1 RS-232 (TxD, RxD, RTS, CTS, GND), COM 2 RS-485 (Data+, Data-).
- Watchdog
- Yes (0.8 second)
- LED
- 5-digit 7-segment LED display for (D) versions
- OS SUPPORT
- MiniOS7 (DOS-like embedded operating system)
- Hukommelse
- SRAM 512 KB Flash 512 KB microSD Expansion Yes, up to 32GB micro SD cards are supported NAND Flash Disk - 256 MB
- Dimensioner
- 91 mm x 123 mm x 52 mm
- ESD
- ESD Protection
- Anden
- I/O Expansion Bus Yes (for one XW-Board only)
ICP DAS UPAC-5201D. Embedded PC LAN og 2G (GPRS) Inkl. MiniOS7
80186, 80 MHz CPU
1 x 10/100 Base-TX Ethernet
1 x RS-232
1 x RS-485
512 KB Flash/ 16 KB EEPROM/ microSD/ 256 MB NAND Flash Disk
64 bit
Til DIN-skinne montering
Forsyning 12-48VDC, 2,5W
Driftstemperatur: -25 til +75°
