Sprog:

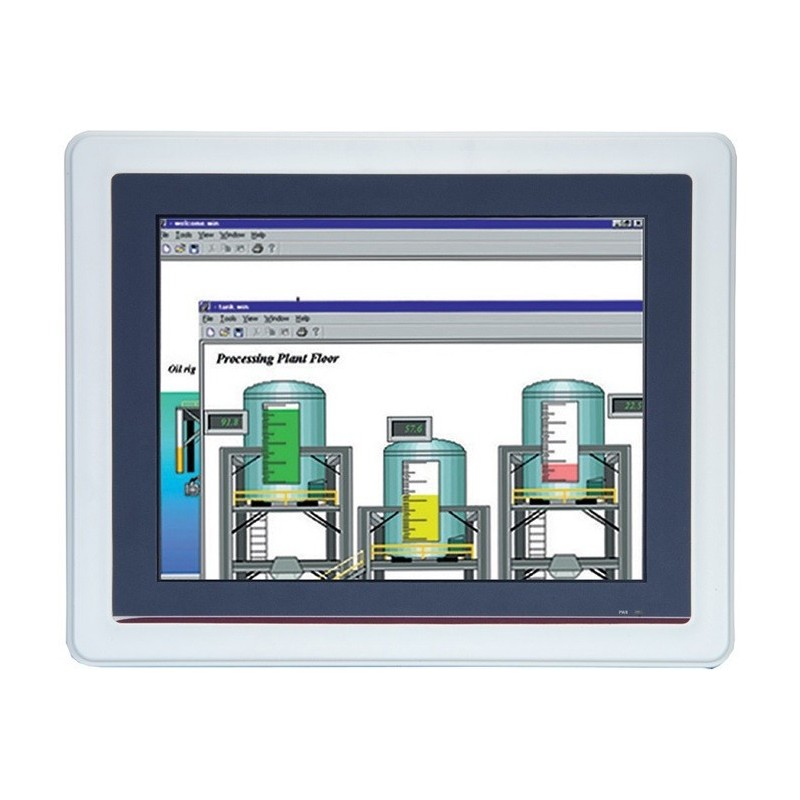

10.4" Panel pc 1.6GHz 2xLAN 2xRS232 4xUSB Touch IP65 front
Varenummer: IPP10.4
Andre modeller og størrelser tilbydes. Kontakt vores salgsafdeling.
Vi kan tilbyde Panel PCér komplet med OS, RAM, SSD installeret.
IPP10.4
Produkt information
- Vægt
- (net/gross) 1.8 kg (3.96 lb)/3 kg (6.61 lb)
- CPU
- Intel® Celeron® processor N3060 (up to 2.48 GHz)
- Forsyning
- DC version: 24 VDC with over current protection fuse (option! AC version: 100~240V AC-DC 60W power adapter need toorder special)
- Driftstemperatur
- Operating Temperature 0°C ~ +50°C (+32°F ~ +122°F) (with W.T. DRAM/HDD in airflow condition) 0°C ~ +45°C (+32°F ~ +113°F) (with W.T. DRAM/HDD)
- Porte
- 1 x RS-232 1 x RS-232/422/485
- BIOS
- AMI
- Watchdog
- 255 levels, 0~255 sec.
- Hukommelse
- 1 x 204-pin SO-DIMM DDR3L-1600 MHz, up to 8 GB
- Lyd
- Line-out
- Montering
- Panel mount Wall mount VESA arm Desktop stand
- IP-Tæthed
- IP65, NEMA 4 rugged protection, plastic front bezel
- Ethernet
- 2 x 10/100/1000 Mbps (Intel® i211AT)
- Dimensioner
- (W x D x H) 292.5 x 45.8 x 235.8 mm (11.52" x 1.80" x 9.28")(W x D x H) 292.5 x 45.8 x 235.8 mm (11.52" x 1.80" x 9.28")
- LCD
- 10.4" XGA/SVGA TFT LCD with LED backlight 350 nits (XGA) 400 nits (SVGA) 1024 x 768 (XGA) 800 x 600 (SVGA)
- Chok/Vibration
- 2G, 5~500Hz, random for SSD
- Touch
- Resistive Type
- Udvidelser
- 1 x Full-size PCI Express Mini Card with mSATA 1 x Full-size PCI Express Mini Card with SIM slot
- Storage
- 1 x 2.5" SATA HDD 1 x mSATA
- Anden
- 1 x HDMI output
10.4" XGA/SVGA TFT LCD display with LED backlight
Resistive Touch
Intel® Celeron® processor N3060
2 Gigabit LAN, 4 USB and 2 COM ports
1 x 204-pin SO-DIMM DDR3L-1600 MHz, up to 8 GB
1 x RS-232
1 x RS-232/422/485
2 x USB 2.0
2 x USB 3.0
IP65 front
