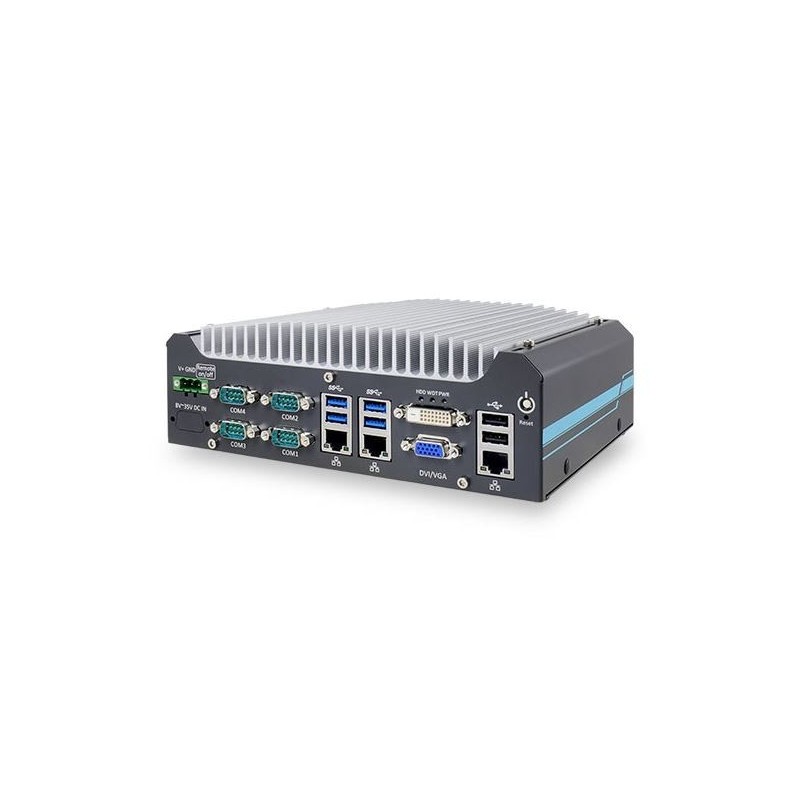

Embedded Fanless Intel Core i3, i5, i7
Varenummer: IPC-I6X-3XGBE
Kan leveres komplet med CPU, RAM og SSD/HDD. Kan leveres med anden konfiguration, kontakt salg.
Spændingsforsyning købes særskildt
IPC-I6X-3XGBE
1 Enhed
Produkt information
- Vægt
- 2.8 kg (incl. CPU, memory and HDD)
- CPU
- Supports Intel 6th-Gen Core
- Forsyning
- 8~35Vdc
- Driftstemperatur
- -25°C ~ 70°C */**
- Chipset
- Intel® H110 platform controller hub
- Input
- 1x 3-pin pluggable terminal block for 8~35 VDC power input
- Hukommelse
- MAX. 16GB DDR4-2133 (single SO-DIMM) not included
- Montering
- Standard wall mount
- Ethernet
- 1xGbit Intel I219-LM, 2 x Gbit Intel I210-IT
- USB
- 2x USB 2.0 & 4x USB 3.0
- Dimensioner
- 221 x 173 x 76 mm
- Chok/Vibration
- Operating, 50 Grms, half-sine 11 ms duration / Operating, 5 Grms, 5-500 Hz, 3 Axes
- Msata
- 1x full-size mSATA socket
- Video
- DVI & VGA
Intel® Core™ 6th-Gen
Supporterer i3, i5, i7 - CPU ikke inkluderet i prisen
Integrated Intel® HD 530/510 controller
Up to 16GB DDR4-2133 - RAM ikke inkluderet i prisen
4 x USB 3.0
2 x USB 2.0
2 x RS-232 & 2x RS 232/ 422/ 485
VGA & DVI
8~35Vdc
Ekskl. OSog strømforsyning
DIN-rail mount kit (optional)
120W AC/DC Power Adapter (optional)
8-CH isolated DI and 8-CH isolated DO (optional)
