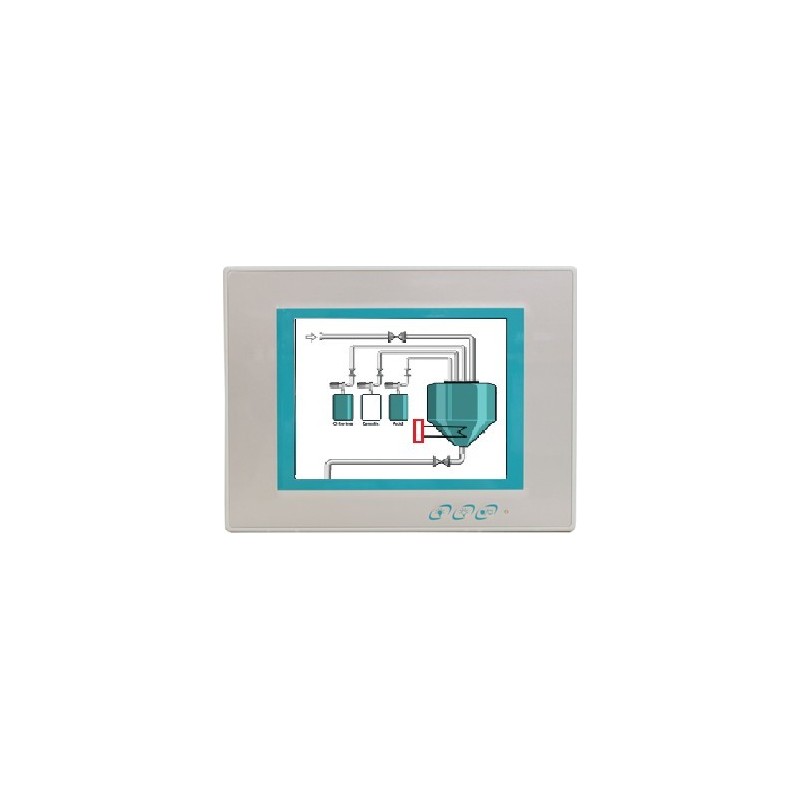

8" panel PC med høj opløsning: 1024 x 768 XGA, Atom™ Processor N2600 1.6GHz

Produkt information

Vægt

1.93 kg (4.25lb)

CPU

Intel® Atom™ Processor N2600 1.6GHz

Forsyning

DC 12V from Terminal Block or Power over Ethernet from RJ-45 Jack

Porte

2 x RS-232 DB-9 ports

Chipset

Intel® NM10

Watchdog

1~255 levels reset

OS SUPPORT

Windows 7 Professional / Windows Embedded 7 Standard (WS7E)

Hukommelse

2GB DDR3 memory soldered on board

Lyd

Speaker 2 x 1.5W Speaker, 1 x Line-out phone jack

Montering

Wall Mounting and VESA-75/100 Mounting

Skærm

8" TFT LCD Panel Max. Resolution 1024 x 768 (XGA) Max. Colors 16.2M Luminance 300 cd/m², View Angle (U/D/R/L) 75°/75°/70°/70°

Temperatur

Operating Temp. 0 ~ 60ºC (32 ~ 140°F) Storage Temp. -20 ~ 70°C (-4 ~ 158°F)

Luftfugtighed

10 ~ 95% RH @ 60°C (non-condensing)

Ethernet

1 x Intel® 82583V GbE controller

USB

2 x USB 2.0/1.1 Type-A ports

Dimensioner

(W x H x D) 274.96 x 207.96 x 40.0 mm (10.82” x 8.18” x 1.57”)

Grafik

Intel® GMA3600

Chok/Vibration

Vibration 5 ~ 500Hz, 2Grms Random Shock Operating 20G, 11ms

Touch

5 Wire Resistive Single Touch

Udvidelser

1 x mini-card socket for mSATA SSD

Storage

1 x mini card slot for mSATA SSD

Approval

Regulatory CE/FCC Class-B, EMC / EMI CE, FCC Class A

Anden

Brightness up/down, Screen on/off, Anti-spark Power Circuit
