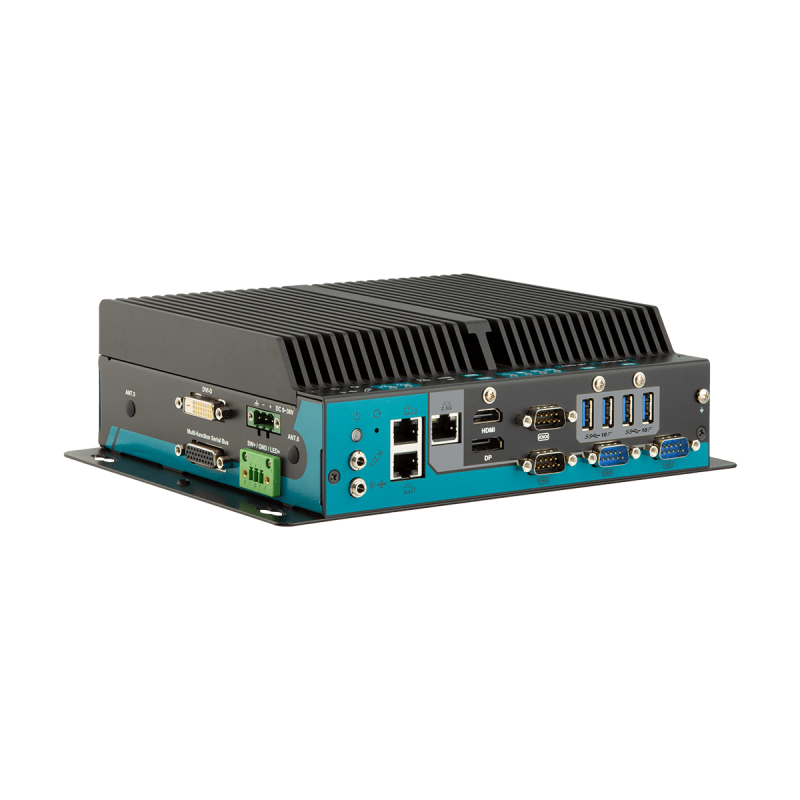

Product title

Produkt information

Vægt

3.7kg

CPU

11. generation af Intel® i5 CPU

Driftstemperatur

-10 ~ 55 °C

Porte

2 x RS232 (DB-9 male connectors), 2 x RS232(Default) / 422/ 485 (RI/ 5V/ 12V) (DB-9 male connector/ Switch via BIOS)

Chipset

soc

Netværk

2 x RJ-45 ports for GbE LAN (PoE complies with IEEE802.3af), 1 x RJ-45 ports for 2.5 GbE LAN (iAMT support w/ i5/i7 skus)

Input

DC 9 ~ 36V (3-pin terminal block: V+, V-, GND)

Hukommelse

2 x 260-pin DDR4 SO-DIMM socket, supporting 3200MHz SDRAM up to 64GB

Montering

Wall-mount (standard) DIN-rail or VESA mount (optional w/ CTOS bracket)

USB

4 x USB 3.2 Gen2 (2 w/ independent full speed), 1 x USB 2.0 onboard for encryption dongle (Type A)

Harddisk

1 x M.2 M-Key 2242/2280, 1 x 2.5” HDD/SSD

Dimensioner

210 x 180 x 70 mm

Chok/Vibration

5~500Hz 3 Grms X,Y,Z axis w/ SSD, 40G peak acceleration (11 m sec. duration), operation w/ SSD

Udvidelser

1 x full mPCIe slot, 1 x M.2 B-Key 2242/3042/3052

Certifications

CE, FCC Class A

Video

1 x HDMI 2.0b, 1 x DisplayPort 1.4, 1 x DVI-D connector
