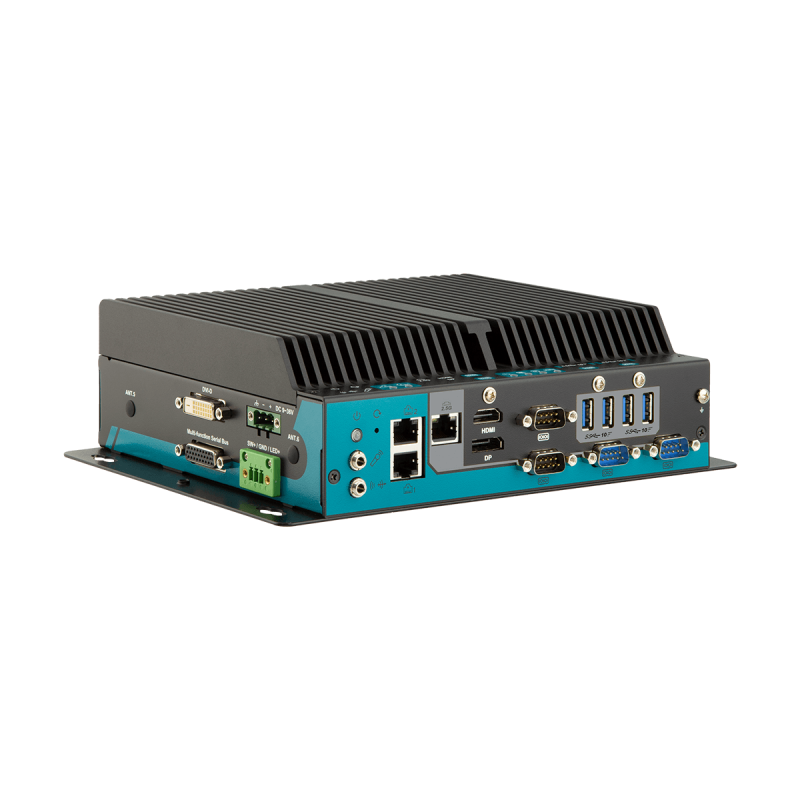

Fanless Embedded pc med 11. generations Intel® i3 CPU (option: i3 og i5)
Varenummer: EPC-GEN11-I7
Robust og stabil Industriel Embedded PC med 11th Gen. Intel® Core™ i CPU.
Kan leveres komplet med CPU, RAM og SSD/HDD. Kan leveres med anden konfiguration, kontakt salg.
Spændingsforsyning købes særskildt
EPC-GEN11-I7
29 Varer
Produkt information
- Vægt
- 3.7kg
- CPU
- Soldered onboard Intel® i7/ i5/ i3 Processor (Default: i3 CPU Tiger Lake-U)
- Driftstemperatur
- -10 ~ 55 °C
- Porte
- 2 x RS232 (DB-9 male connectors), 2 x RS232(Default) / 422/ 485 (RI/ 5V/ 12V) (DB-9 male connector/ Switch via BIOS)
- Chipset
- soc
- Netværk
- 2 x RJ-45 ports for GbE LAN (PoE complies with IEEE802.3af), 1 x RJ-45 ports for 2.5 GbE LAN (iAMT support w/ i5/i7 skus)
- Input
- DC 9 ~ 36V (3-pin terminal block: V+, V-, GND)
- Hukommelse
- 2 x 260-pin DDR4 SO-DIMM socket, supporting 3200MHz SDRAM up to 64GB
- Montering
- Wall-mount (standard) DIN-rail or VESA mount (optional w/ CTOS bracket)
- USB
- 4 x USB 3.2 Gen2 (2 w/ independent full speed), 1 x USB 2.0 onboard for encryption dongle (Type A)
- Digital I/O
- 8 x DI, 8 x DO w/ 1.5KV isolation
- Dimensioner
- 210 x 180 x 70 mm
- Chok/Vibration
- 5~500Hz 3 Grms X,Y,Z axis w/ SSD, 40G peak acceleration (11 m sec. duration), operation w/ SSD
- Udvidelser
- 1 x full mPCIe slot, 1 x M.2 B-Key 2242/3042/3052
- Certifications
- CE, FCC Class A
- Video
- 1 x HDMI 2.0b, 1 x DisplayPort 1.4, 1 x DVI-D connector
11. generations Intel® i7 CPU (Option: i3, i5)
2 x 260-bens DDR4 SO-DIMM (maks. 64 GB)
1 x M.2 M-Key, 1 x 2,5” HDD/SSD
16 x I/O, 4 x COM, 3 x LAN(2xPoE), 4 x USB3.1, Remote PWR
Videoudgang: DVI-D, HDMI, DP
Montering: Vægmontering (Option: DIN-skinne eller VESA)
Strømindgang: 9~36 VDC
Dimensioner: 210x180x70mm (BxDxH)
Driftstemperatur -10 ~ 60 °C With Airflow
