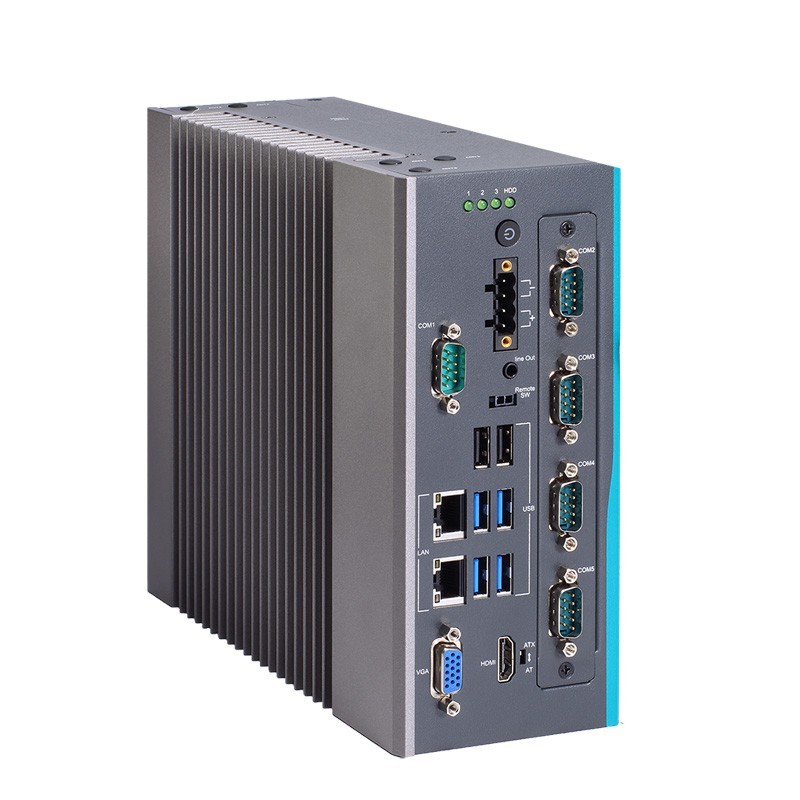

Blæserløst system, 9./8. generation i7/i5/i3 Celeron®-processor, Intel® H310, USB, RS232, VGA, HDMI, DIN-MOUNT
Varenummer: EPC-IX-2E1S6UHV-DIN
Speciel fanless industri PC, beregnet til 24/7 drift år efter år.
Mulighed for udvidelse (SKAL BESTILLES SPECIELT)
IKKE ALLE UDVIDELSER KAN BRUGES SAMTIDIGT.
OPTION 1
-10°C to +60°C4 x RS-232/422/485 module (default RS-232)
OPTION 2
2 x RS-232/422/485 with isolated 1.5kVDC & 8-in/8-out with isolated 1.5kVDC DIO module
OPTION 3
4 x RS-232/422/485 with isolated 2kVDC module
OPTION 4
1 x 10/100/1000 Mbps (Intel® i211-AT) Ethernet
EPC-IX-2E1S6UHV-DIN
Produkt information
- CPU
- 9th/8th gen Intel® Core™ processor, up to 65W
- Udgange
- 1 x VGA 1 x HDMI
- Driftstemperatur
- -10°C to +60°C (+14°F to +140°F) with Intel®, 9th/8th gen Intel® Core™ and W.T. HDD/SSD
- Porte
- 1 x RS-232/422/485 (default RS-232) OPTION! More COM ports available from extension I/O modules
- Chipset
- Intel® H310
- BIOS
- AMI
- OS SUPPORT
- Windows® 10, Linux
- Hukommelse
- 2 x DDR4-2666/2400 MT/s un-buffered SO-DIMM, up to 64GB
- Spænding
- Montering
- Wall mount as option, DIN mount as option
- Ethernet
- 2 x 10/100/1000 Mbps (Intel® i211-AT & i219-LM) OPTION! More LAN ports available from extension I/O modules
- USB
- 4 x USB 3.1 Gen1 2 x USB 2.0 1 x USB 2.0 (internal, 180D type A for license key, up to 30mm)
- Mål og vægt
- Weight (net/gross) 3.82 kg (8.43 lb)/4.78 kg (10.55 lb)
- Dimensioner
- Dimensions (W x H x D) 83.5 x 192 x 230 mm (3.28" x 7.54" x 9.04")
- Materiale
- Aluminum extrusion heavy-duty cold-rolled steel
- Approval
- CE/FCC
- mPCIe
- 1 x Full-size PCI Express Mini Card slot (USB interface)
- TPM
- Supports TPM 2.0
- AMT
- 12
Industriel Fanless Celeron, i3/i5,i7 CPU support (LGA 1151)
Gen. 8/9
1x RS232/422/485. OPTION! ISOLERET RS232/422/485, Skal bestilles specielt!
4 USB 3.1 Gen. 1
2 x USB2.0
1 x USB (internt, 180D type A til Licens Key, op til 30mm)
2 x ETH Intel i211-AT & i219-LM (Option! flere kan bestilles)
VGA, HDMI udgang
19~30Vdc
83,4x192x230mm (WxHxD)
Arbejds temperatur -10°C to +60°C, BEMÆRK KRÆVER RAM OG SSD også er specificeret til -10°C to +60°C Bestilles seperat!
OS support Windows 10 og Linix
