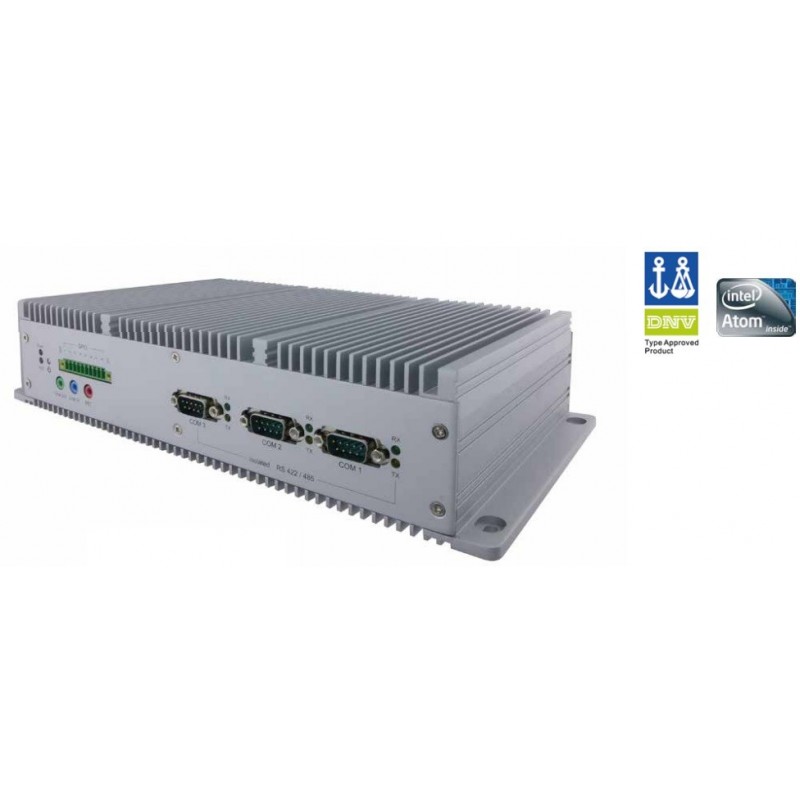

Embedded DNV Marine godkendt PC, 3 x RS422/485 Isoleteret, D2550 1.86GHz, 2 x Gbit
Varenummer: IPC-ATOM-D2550M
Et eksempel på hvad vi kan tilbyde af marine/DNV godkendt embedded PC. Andre modeller og løsninger tilbydes. Kontakt salgsafdeling for yderlig information.
PG
IPC-ATOM-D2550M
1 Enhed
Produkt information
- Materiale
- Aluminum housing
- CPU
- Intel® Atom Dual Core D2550 1.86 GHz
- Forsyning
- +24Vdc in with 1.5KV DC isolation, Resistance (+9~36V DC input acceptable)
- Udgange
- VGA
- Driftstemperatur
- -15 to 55 deg.C
- Porte
- 1 x RS232, 3 x Isolated RS422/485 auto-detected with Indicator
- Chipset
- Intel NM10
- Hukommelse
- 1 x SODIMM, Max 4GB DDR3 800(2GB Default)
- Lyd
- 1 x Micro in , Line out , Line in Jack
- Montering
- default wall mount! Option VESA/Desktop
- Luftfugtighed
- 5% to 95% (non condensing)
- Ethernet
- 2 x RJ45 Broadcom BCM57780 GbE controller
- USB
- 4 x USB 2.0 by pin-header(internal) ; 2 x USB 2.0 (external)
- Dimensioner
- (L x W) 296mm x 169mm x 66mm
- Grafik
- Integrated in Intel NM10, LVDS/CRT
- Chok/Vibration
- Anti-Vibration 5Hz~500Hz /1Grms /3 Axis Anti Shock 15G, 11ms duration
- GPIO
- 8 x GPIO by Phoenix type Terminal Block
- Approval
- DNVGL-CG-0339, IEC 60945 4th Edition, CE / FCC
- Msata
- 1 * 64 GB mSATA SSD
Design for Industriel Automation, M2M løsninger
Onboard Atom Dual Core D2550 1,86 GHz processor
1 x DDR3 SODIMM, max. 4GB
3 x RS422 / 485 kommunikation med isolation beskyttelse
Support 8 GPIO af Phoenix typen Terminal Block
2x Giga LAN, 2x USB, 1x VGA, 1x Line in, Line ud, Micro I
Blæserløs , Højeffektiv termisk design vægt / forseglet konstruktion
OS support: Windows7 32bit
1,5kV jævnstrøm isolationsmodstandDNVGL-CG-0339, IEC 60945 4th Egdtion, CE / FCC
