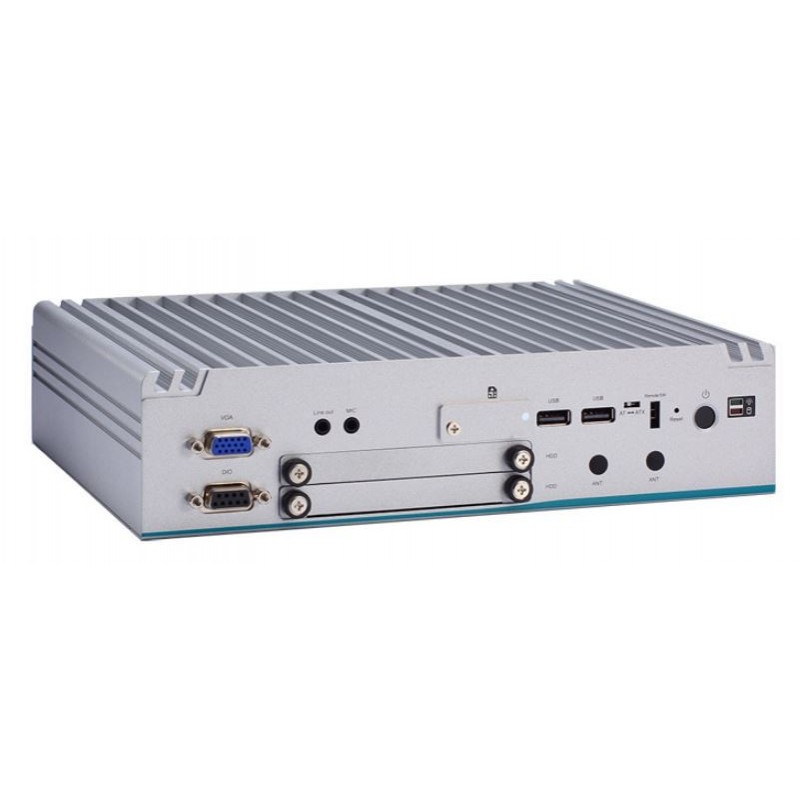

Fanless Embedded PC 8th Gen Intel® Core ™ I7 / I5 / I3 & Celeron® Ult, 2 HDMI, 1 VGA, 3 GBE LAN, 6 USB 9~36 VDC -40°C to +70°C

Produkt information

Vægt

1.38kg (no ram no ssd)

Materiale

Aluminum extrusion and heavy-duty steel, IP40

CPU

Intel® Core™ i7-8665UE/i5-8365UE/i3-8145UE & Celeron® 4305UE (TDP up to 15W)

Forsyning

9 to 36Vdc Phoenix VDC power input connector

Udgange

2 x HDMI (lockable) 1 x VGA

Driftstemperatur

-40°C to +70°C (-40°F to +158°F) with 0.7 m/s air flow -40°C to +65°C (-40°F to +149°F) with 0.5 m/s air flow (with W.T. DRAM & SSD,CPU TDP 15W)

Porte

2 x RS-232/422/485 2 x RS-232

Chipset

soc

BIOS

AMI

Watchdog

255 levels, 1 to 255 sec.

OS SUPPORT

EOS Support Win 10 IoT, Linux

Antenne

4 x SMA-type antenna opening

Hukommelse

2 x 260-pin DDR4-2400 SO-DIMM, up to 64GB

Lyd

1 x Audio (Mic-in/Line-out)

Montering

option need to be ordered Wall mount kit DIN-rail kit

IP-Tæthed

IP40

Ethernet

3 x 10/100/100 Mbps Ethernet (Intel® i219LM, Intel® i211AT)

USB

2 x USB 3.1 Gen2 2 x USB 3.1 Gen1 2 x USB 2.0

Digital I/O

8-CH TTL DIO via DB9 female

Dimensioner

((W x D x H) 250 x 170 x 60 mm (9.84” x 6.69” 2.36”)W x D x H) 250 x 170 x 60 mm (9.84” x 6.69” 2.36”)

Chok/Vibration

Shock IEC 60068-2-27 (with SSD: 50G, half sine, 11 ms duration) Vibration IEC 60068-2-64 (with SSD: 3Grms STD, random, 5 to 500 Hz, 1 hr/axis)

SIM kort

1 x Front-access SIM slot

Approval

CE, FCC Class A

Msata

1 x mSATA (enabled in BIOS setting)

mPCIe

2 x Full-size PCI Express Mini Card slot Slot A (USB + PCIe signal) Slot B (USB + PCIe + SATA signal)

TPM

2.0

SSD

2 x 2.5” swappable HDD drive bay (max. up 9.5 mm height)
