Fanless Mini PC til firewall, VPN eller andre netværksopgaver, 6xRJ45, Option: SIM
Varenummer: EPC-3865U-6ETH
Industriel embedded løsning velegnet til Firewall, VPN Router, Netværksserver,Netværks sikkerhed.

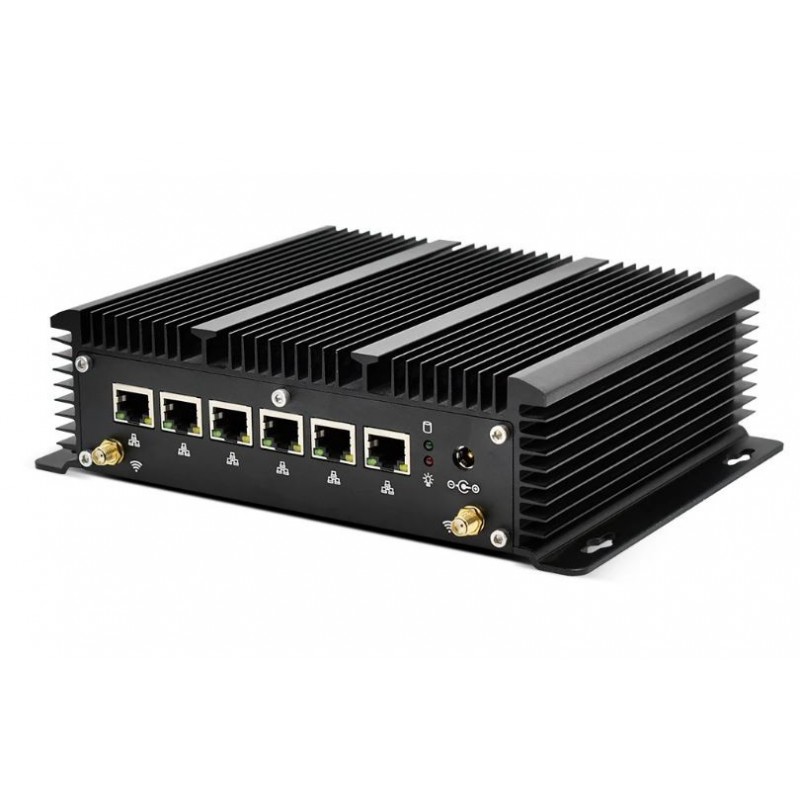

EPC-3865U-6ETH
Produkt information
- CPU
- Celeron 3865U Option: i3, i7
- Forsyning
- 12V DC
- Driftstemperatur
- -20C° to +60C°
- Porte
- 1 x DB9 RS232 COM, 1 x RJ45 RS232 COM
- Netværk
- 6x Intel(R) i210/i211-AT
- OS SUPPORT
- Pfsense, Windows®10, WES 10, LINUX etc
- SATA
- 1 x SATA3.0 slot for SATA HDD or SSD, support 6Gb/s
- Hukommelse
- 1 x SO-DIMM DDR4 Slot Support 4GB/8GB/16GB/32GB DDR4-2133, 2400, 2666
- USB
- 4 x USB3.0
- Dimensioner
- 209x150x57mm
- Msata
- 1 x M-SATA3.0 slot for MSATA SSD, support 6Gb/s
- mPCIe
- 1 x mini PCIE-full/mini PCIE-half port for 3G/4G/Wi-Fi module(USB WIFI protocol)
- Video
- 1 x HDMI
Fanless System
Kontinuerlig drift
Celeron 3860U, Option: I3, I7
6x Intel I201/I211 Gigabit RJ45 Porte
2x RS232 COM Porte
1x MSATA SSD + 1x 2.5" SSD/HDD
Option: 1x SIM slot, 3G/4G/WiFi
Anvendt i Firewall, Network Server, Network Security, VPN Router osv.
Fuld aluminiumslegering
Slank Design 209x150x57mm.
Support WatchDog, Awal, RTC, WOL, PXE, Nulstil funktioner.
OS Support: Windows® 7/8/10, PFSENSE, WES 7/10, LINUX
