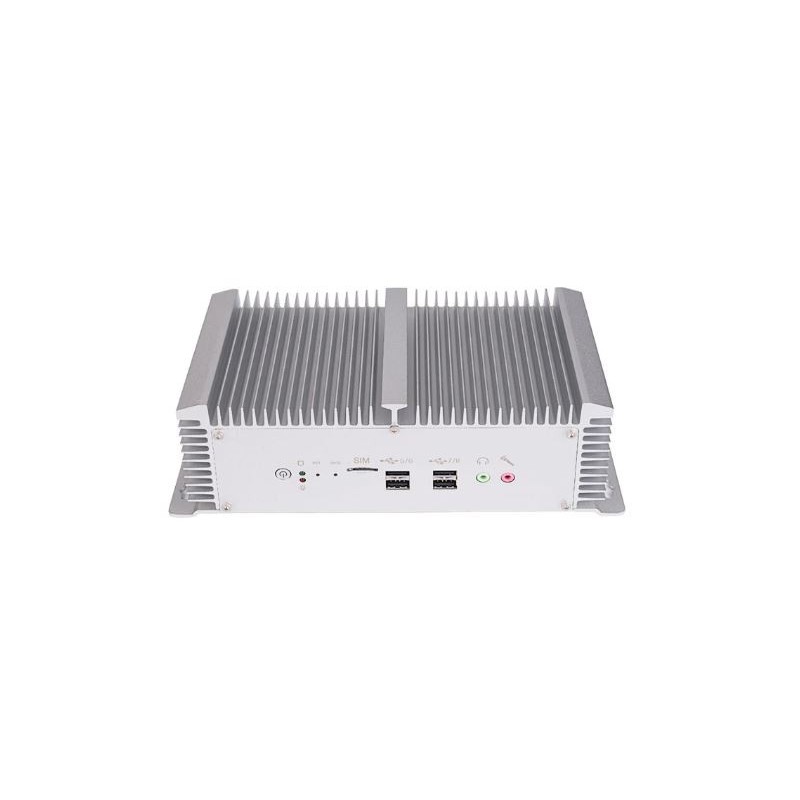

Industriel fanless embedded PC i7 7500U 6 x COM, 8 x USB, 2 x LAN, HDMI, VGA, 4G LTE GPIO

Varenummer: EPC-I7-6S2E8UHV

Fanless design
CPU i7-7500 2.7GHz
RAM 2x SO-DIMM slot max 32GB
2 x RJ45 Gbit
6 x RS232/422/485 (BIOS select)
1x HDMI
1xVGA
1x GPIO 0-7
1x M-SATA 3.0 for SSD
1x SATA 3.0
SIM sokel til 4G (full port 3G/4G module mini PCIE)
Wifi 1 x mini PCIE-half port module
12Vdc
83x228x83 (hxbxd)
​OS support Windows 8, Windows 10, Linux, Ubuntu, CENTOS

  • Tilføj til sammenligning Fjern fra sammenligning

    • Ring for pris
    0,00 DKK
    Ekskl. moms
    Sidste elementer på lager
    Antal

    EPC-I7-6S2E8UHV
    1 Enhed

    Produkt information

    Vægt
    3Kg
    CPU
    Intel Core i7-7500
    Forsyning
    12Vdc , No power adapter included
    Udgange
    1xVGA, 1xHDMI
    Driftstemperatur
    0 to 60 degress
    Porte
    6 x COM ports, COM1 COM2 can change to RS232/422/485 from BIOS, COM3-COM6 RS232
    Netværk
    1xVGA, 1xHDMI
    Watchdog
    Watchdog yes
    OS SUPPORT
    Windows 8, windows 10, Linux, Ubuntu
    Lyd
    Intel High Definition Audio, 1x Mic, 1x SPK
    USB
    4xUSB3.0, 4xUSB2.0
    Dimensioner
    150x83x224mm (248mm chassis, mounting)
    Grafik
    Intel UHD Graphics 620
    Chok/Vibration
    5-200hz (1g) acceleration amplitude (o.5mm), Accelration (10G) duration (11ms)
    SIM kort
    1xSIM card slot in front, 1xmini PCIE-Full port for 3G/4G module
    Anden
    Auto power on, RTC, State lamp interface, Trigger switch(wafer 1*2)
    WiFi/WLAN
    OPTION! 2 x Wifi antenna, 1xmini PCIE-half wifi modul
