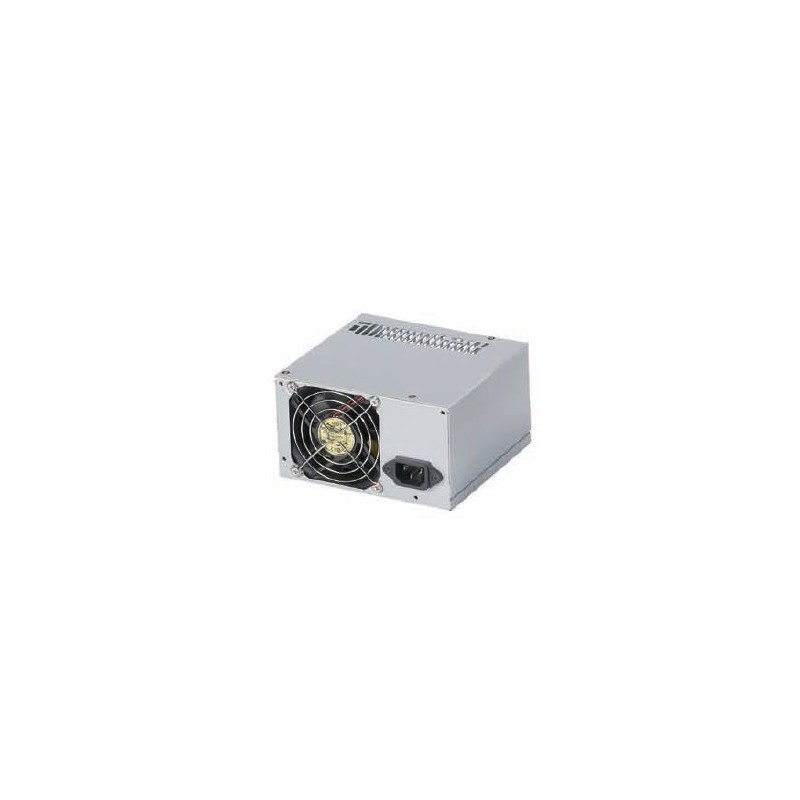

350 Watt PS/2 strømforsyning med -5Volt

Varenummer: PS350ATX+Y

80 Plus Bronze
350Watt
PS/2
Industriel

Mål: H 86 x B 150 x D 140

1.600,00 DKK

Ekskl. moms

Sidste elementer på lager

Antal

Reference PS350ATX+Y

Lagervarer først 2 Varer

Forsyning: 90-264Vac, 47-64Hz, 115Vac@6A, 230Vac@3A
Effekt: 350 Watt
Output: +3.3Vdc output : +3.7 Vdc minimum, + 4.8Vdc maximum +5Vdc output : +5.7 Vdc minimum, + 7Vdc maximum +12Vdc output : +13.3 Vdc minimum, + 16Vdc maximum
Temperatur: Operating : 0 to +50℃ Storage :-20 to +80℃
Luftfugtighed: Operating : 85% to % RH, Non-condensing Storage : 95% to % RH, Non-condensing
Dimensioner: 140 x 150 x 86mm
Støj: 115V-rms/230V-rms 5V 20ms Maximum 115V-rms/230V-rms 12V 20ms Maximum
MTBF: 100.000 houers of continuous operation at 25C max. output load
Approval: EN62368
Anden: Over current protection 3.3V:50mV p-p 5V:50mV p-p 12V1:120mV p-p 12V2:120mV p-p -12V:120mV p-p 5Vsb:50mV p-p -5V:100mV p-p
