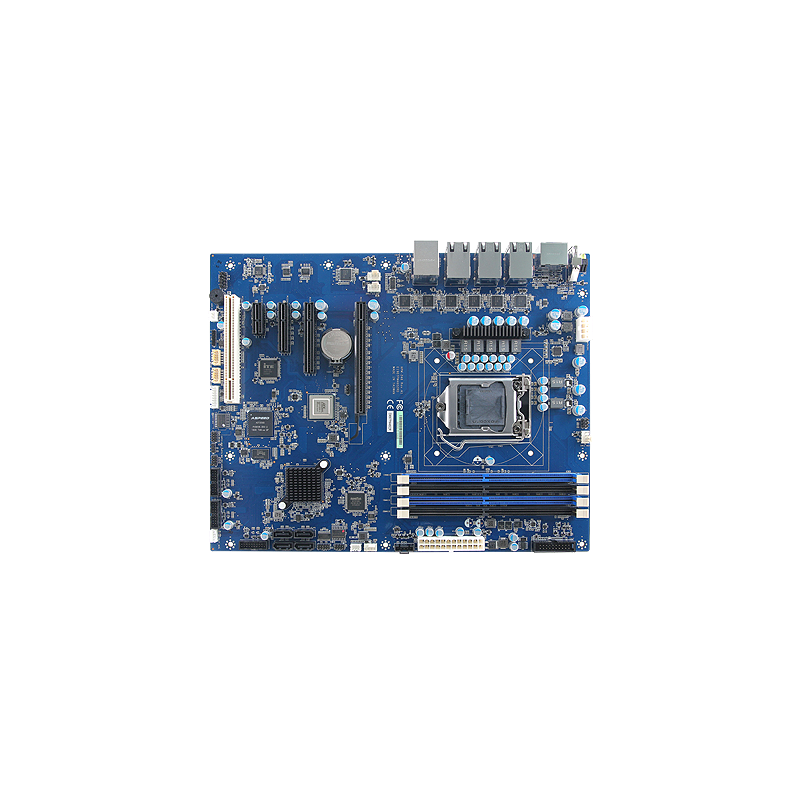

Industriel ATX motherboard baseret på 8/9th Gen Intel® Core™ processor
Varenummer: BK1151-GEN89-3DP
BK1151-GEN89-3DP
Produkt information
- Vægt
- 0.7 kg
- CPU
- Intel® LGA1151 Socket Supports 8th/9th Generation Core™ i7/ i5/ i3 / Pentium®/Celeron®/ Xeon® E Process
- Driftstemperatur
- 0~60°C (32~140°F) for M/B level
- Porte
- Internal 6 x USB 3.2 Gen1, Eexternal 2 x USB 3.2 Gen2, 4 x SATA III, 2 x RS232
- Chipset
- ATX Motherboard With Intel® C246 Chipset
- Netværk
- 7 x Intel®I210AT Giga-bit Ethernet
- Hukommelse
- 4 x 288-pin DDR4 2666MHz DIMM supports up to 128GB (ECC memory supported by CPU)
- Lyd
- Realtek ALC892
- Strøm
- ATX
- Dimensioner
- 304.8mm x 243.84mm
- Video
- 3 x DP++ (DP: 4096 x 2304 @ 60Hz HDMI : 4096 x 2160 @ 30Hz)
Intel® 8/9th Gen. Core™ i7/i5/i3/Pentium®/Celeron®/Xeon® E Processor
ATX Motherboard With Intel® C246 Chipset(CPU TDP support up to 95W TDP)
4 x 288-pin DDR4 2400/2666MHz DIMM socket, supports up to 128GB (ECC memory supported by CPU)
4 x SATA III , 6 x USB3.2 Gen1
1 x PCIe Gen3 x16 slot, 1 x PCIe Gen2 x8 slot, 1 x PCIe Gen3 x4 slot, 1 x PCIe Gen3 x1 slot and 1 x PCI 3.0 x1 slot
2 x USB3.2 Gen 2
7 x RJ-45 (LAN 1 port shared with IPMI 2.0), 3 x DP++
IPMI 2.0 with AST 2500 BMC controller onboard
ATX Power
