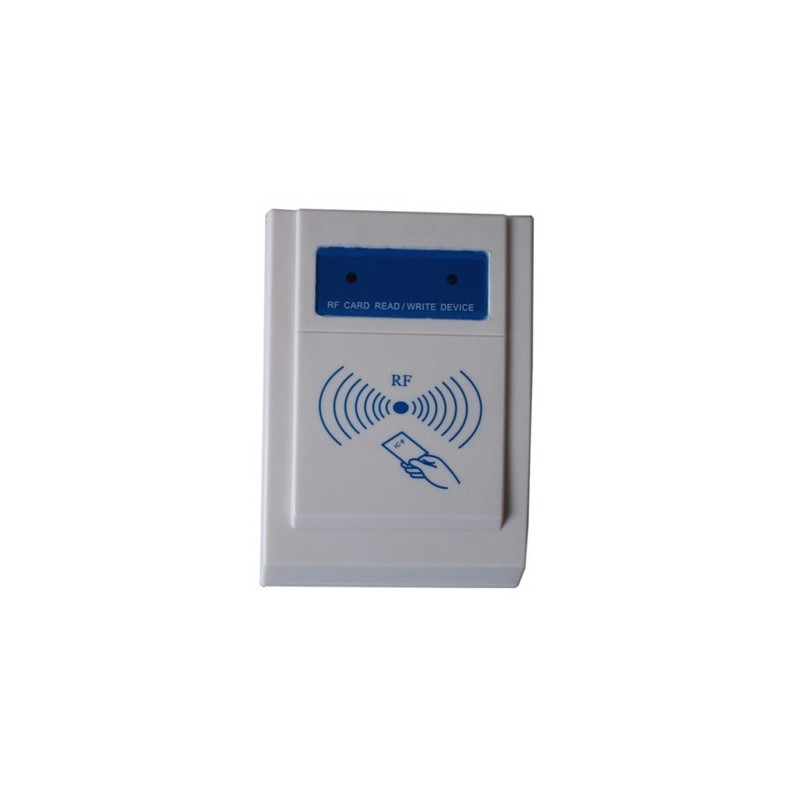

RFID reads Mifare 13.56MHz for TCP / UDP network, 5VDC

Product code: RFID-MR-ETH

Network RFID reader
10 / 100Mbit Ethernet interface
Supports MDI / MDIX
1 x RJ45 and 1 x DC connector
TCP Server, UDP, DHCP
for 13.56MHz Mifare card
Supply: 5V DC PSU Max 300mA

  • Add to Comparison Remove from Comparison
    • 1,396.00 DKK
    Tax excluded
    Last items in stock
    Quantity

    Clearance
    card reader based on TCP / IP network.
    Can easily connect Ethernet network (LAN, WAN, MAN). Reads RFID card and via query can ID retrieve via Ethernet.

    RFID-MR-ETH
    1 Item

    Data sheet

    Driftstemperatur
    -15 - +75℃
    Stik
    RJ45 og DC interface
    Netværk
    support Network protocol: TCP Server、TCP Client、UDP、DHCP etc.
    Tilslutning
    Support multi-to-one visit in LAN. Support internet and transmission between different subnets
    Rækkevidde
    Effective distance is larger than 5cm
    Strømforsyning
    5V DC power supply, low power consumption less than 300MA
    Dimensioner
    100 x 140 x 30 mm
    RFID
    Network RFID Reader V2, which can support 13.56Mhz IC Card.
    Other
    Fast response to HID card, Real-time transmission. Fully support HID and its compatible card
