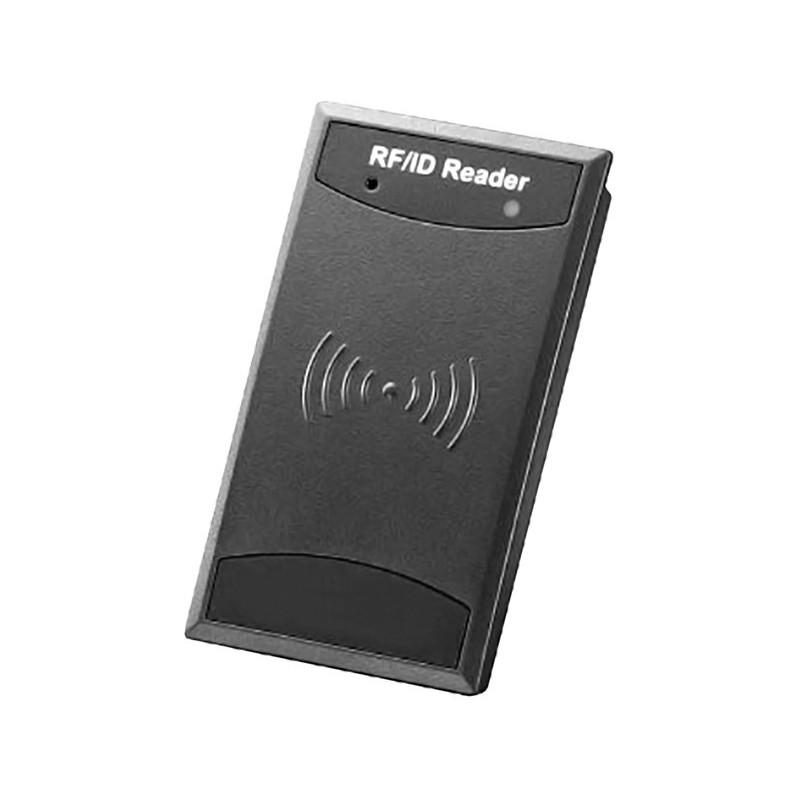

RFID Reader 13.56MHz, Mifare, Felica, Desfire, Ultralight, Felica. For wall, RS232 and Wiegand, 5 - 18VDC
Product code: RFID-MR-MULTI
Felica developed by SONY - most of debit cards. It looks like Mifare Pro, but does not comply with ISO 14443 - standard, so it can not be considered a Mifare technology. It complies with the other hand ISO 18092 standard and the Japanese JIS: X6319-4 standard.
RFID-MR-MULTI
2 Items
Data sheet
- Driftstemperatur
- -10 til +60 °C
- Interface
- Wiegand og RS232
- Rækkevidde
- Op til 3 cm
- Montering
- Væg
- Strømforsyning
- Kræver mellem 5,0 og 18 VDC. Forbindes til skrueterminal
- Dimensioner
- 47 x 83 x 16 mm
- Tag-typer
- Understøtter både 125kHz, Mifare og Felica teknologierne
RFID Mifare reader
Reading distance up to 3 cm
RS232 or Wiegand 26 Interface
for wall mounting
LED and Buzzer
Supply voltage: 5 - 18VDC
cable from back
Target: 78 x 43 x 15 mm
