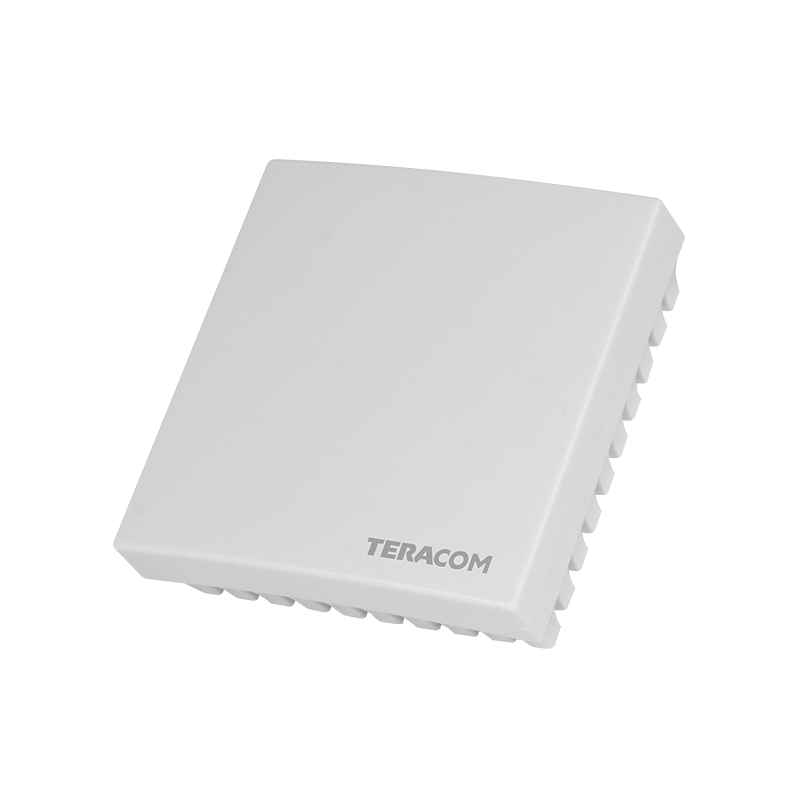

Temperature and humidity sensor with a MODBUS RTU RS485 interface.

Product code: TSM400-4-TH

Temperature and Humidity sensor
RS485 MODBUS RTU
Temperature: +/-0,4 °C (-10 to +60°C), max. +/-0,6°C
Resolution: 0,1°C
Humidity: +/-3,0% RH (20 - 80% RH), max. +/-5% RH
Resolution: 0,1% RH
Supply voltage: 4,5 - 26VDC
LED indicator for status of communication
Long-term stability based on digital signal processing
RS-485 interface (2-wire) carrying up to 32 nodes
Changeable bitrate and other communication parameters
Firmware update via the interface
Size: 81 x 81 x 30 mm
Weight: 66g

  • Add to Comparison Remove from Comparison
    • 975.00 DKK
    Tax excluded
    On the way in
    Quantity

    TSM400-4-TH is a humidity and temperature sensor that supports MODBUS RTU protocol over the RS-485 interface. A unique capacitive element is used for measuring relative humidity while the temperature is measured by a band gap sensor. Both sensors are seamlessly coupled to a 12-bit analog to digital-converter. This results in superior signal quality. The TSM400-4-TH multi-sensor is housed in a slim plastic enclosure. The bottom part of the enclosure is suitable for installation on standard flush-mounted/cavity wall boxes ø68mm, with installation openings on 61 mm.



    TSM400-4-TH
