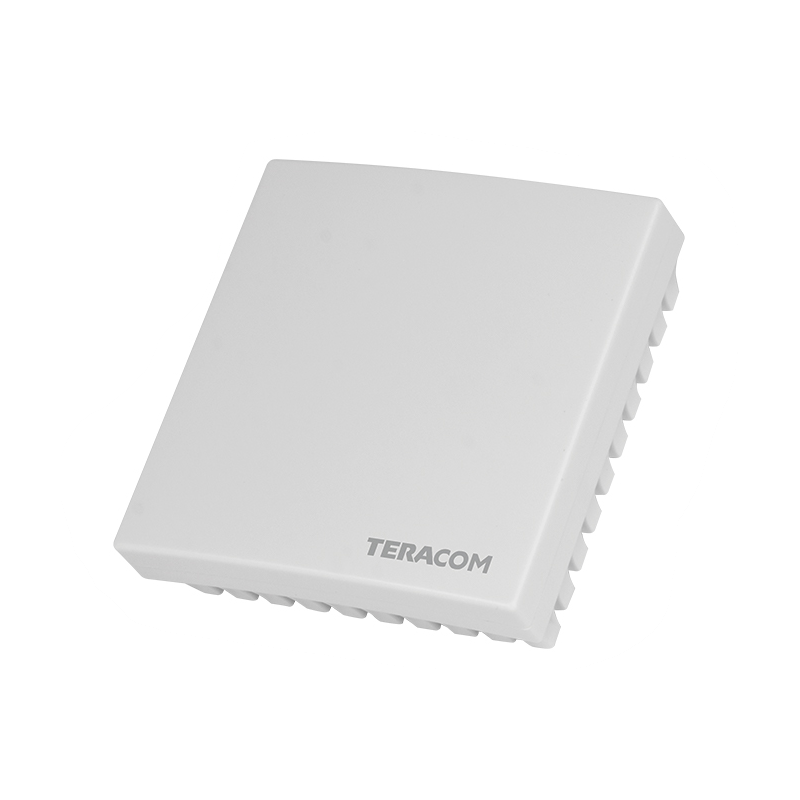

Combined CO2 and barometric pressure sensor with a MODBUS RTU RS485 interface.

Product code: TSM400-4-CP

Multi sensor for CO2 and Barometric pressure
Interface: RS485 - MODBUS RTU
LED indicator for status of communication
Long-term stability based on digital signal processing
Self-calibration on fresh air for CO2 measurements
Changeable communication parameters
Non-volatile memory for all settings
Firmware update via the interface
Size: 81 x 81 x 30 mm
Weight: 66g
Supply voltage: 4,5 - 26VDC / Max. 150mA

  • Add to Comparison Remove from Comparison
    • 1,894.00 DKK
    Tax excluded
    Last items in stock
    Quantity

    Indoor air quality (IAQ). CO2 storage facilities leakage control. Smart ventilation systems. Restaurants and breweries CO2 level monitoring.

    CO2 measurements:
    Range: 400 to 5000 ppm
    Accuracy: ± (40 ppm + 5 %)
    Resolution: 1 ppm
    Calibration: Automatic, if the sensor is exposed to fresh air for more than 30 minutes.

    Pressure measurements:
    Range: 10 to 1200 hPa
    Accuracy (min): ±1.5 (25°C, 750 hPa)
    Accuracy (max): ±2.5 (-20°C to + 85°C, 300 to 1100 hPa)
    Resolution: 1 hPa
