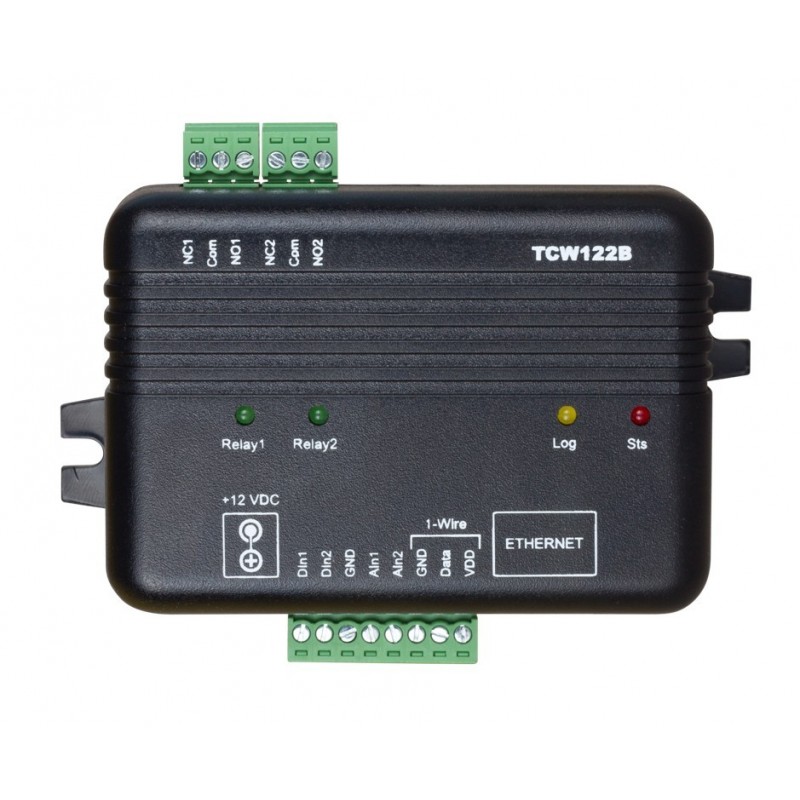

Remote control and measurement module, IP watchdog for restart, 2 x DI, 2 x AI, 2 x relay output, 1-wire sensor input, 10-14VDC
Product code: TCW122B-WD
The TCW122B-WD is a monitoring module for monitoring IP monitoring programs specifically designed for a fail-safe monitoring system.
The module controls the functionality of devices or networks by sending or receiving ICMP echo request or ICMP echo, respectively. answer.
The current relay is activated if there is no ICMP echo (ping) within a certain time. This can restart the monitored device or network switch / router.
The TCW122B-WD has two digital and two analog inputs. There are two relays usually have open and normally closed contacts.
For all monitored parameters - temperature, humidity, analog voltage and status of digital input, SNMP trap can be sent under certain conditions.
The relays can be activated externally (WEB and / or SNMP) or automatically from the presence / absence of ping.
TCW122B-WD
2 Items
Module with password protected Web based configuration and control
1-Wire interface for 2 sensors
2 x relay outputs with NO / NC contacts
2 x analog input with 0 to 60VDC
2x digital input with "dry contact" or "logic level" mode
Stable IP watchdog monitoring - for restarting equipment
SNMP v.1 support
SNMP trap conditional messages
VLAN and MAC address filtering
Remote FTP firmware update.
12VDC - purchase PSU
