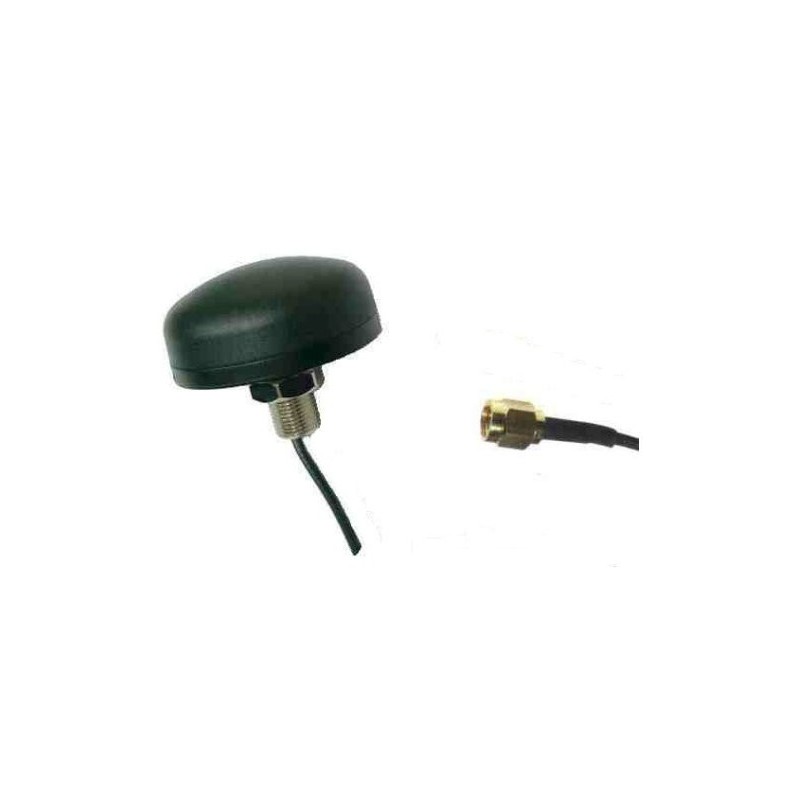

Outdoor Quad Band Antenna 850/900/1800/1900 / 2170MHz 2.5 dBi antenna dome, vandal proof round jet, 2.5m cable with SMA he

Product code: GSM-ANT2V

Vandal secure GSM dome dome antenna for hollow mounting
Quad band - 850/900/1800/1900 / 2170MHz
With 2.5 meters RG 174U cable - SMA he
ABS plastic - with rubber seal Ø47 x 15mm, M10 thread, 12mm
bandwidth ± 90/280 MHz
Gain 2,5dBi
vertical
Max wind speed 200km/h

  • Add to Comparison Remove from Comparison
    • 167.00 DKK
    Tax excluded
    Physically in stock
    Quantity

    ANT2V GSM to GSM / CDMA / UMTS. Suitable for mounting on the car roof, so to enhance cell phone signal while driving. Made of ABS thermoplastic and comes with rubber gasket.

    Mounting: M10 thread, 12mm long

    GSM-ANT2V
    23 Items

    Data sheet

    Compositions
    Black ABS
    Driftstemperatur
    -40℃~+85℃
    Maks. effekt
    Max Input power(W) 50
    Kabel
    2.5m RG174, RG316, LMR100
    Frekvens
    850/900/1800/1900/2170MHz
    Båndbredde
    ±90/280 MHz
    Montering
    Screw
    Luftfugtighed
    95%~100%RH
    Dimensioner
    Size Φ47×14mm Weight ＜250g
    Chok/Vibration
    Sine sweep 1g(0-p), 10~50~10Hz each axis
    Indgangsimpedans
    50 OHM
    Gain
    3.0dBi
