RFID reader EM 125khz. UID is 40 bits, 10 digit ASCII. RS232, Wiegand 26 Bit, LED, Buzzer. Waterproof. 12vdc.

Product code: RFID-R10N

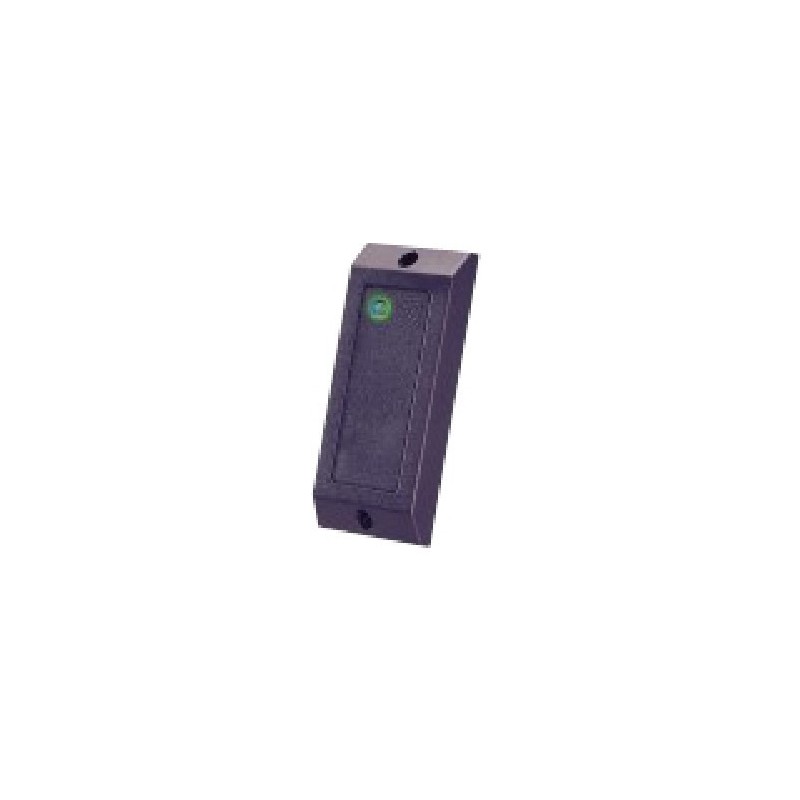

125khz RFID reader for outdoor mounting on wall
sealed with hardened epoxy - cable mid rear
EM4000 125khz RFID Reader for wall mounting
reading distance 0 - 5cm, depending on roof size
40 bit code, 10 digits ASCII (Decimal)
RS232, only TX. GND
9600, 0 Start, 8 Data, 1 Stop, Non Parity, FLOW: HW
Wiegand 26bit format
LED Indicator and Buzzer Control Manager
Supply voltage: 12VDC / 200ma
Cable length 1 meter (8 Core)
Goal: 114 x 46 x 13 mm

  • Add to Comparison Remove from Comparison
    • 947.00 DKK
    Tax excluded
    Last items in stock
    Quantity

    Vægmonteret 125kHz RFID læser til RS232 eller Wiegand 26bit. Dataformat og baudrate finder du i datablad - medfølger og på DANBIT´s FTP-Server.
    Kræver log-in for adgang.
    8 ledere kabel.
    Sort: GND
    Rød: +12VDC
    Grå: Start/stop for Wiegand
    Gul: Wiegand Data 0
    Grøn: Wiegand Data 1
    Hvid: LED kontrol ledning
    Blå: Buzzer kontrol ledning
    Brun: RS232 TX data

    RFID-R10N
