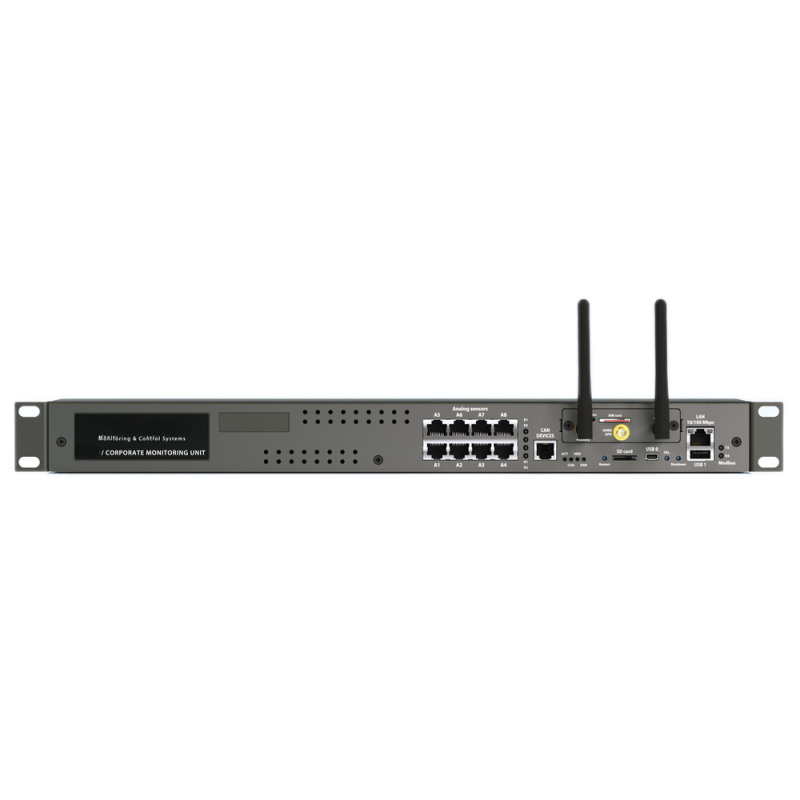

Server room monitoring in real time Temperature, Humidity, Voltage, Smoke, Air, Digital I/O, WEB interface 4G
Product code: REMOTE-MON
The device is used for environmental monitoring (eg temperature, humidity, voltage, leakage, smoke, air flow). It is also used as an I/O controller (eg door control, fans, generator, control panels, UPS, circuit breakers, alarms). Can use up to 1000 different elements - messages, triggers, timers, logic schemes, sensors, dry contacts. Has a built-in web interface with virtual sensors, logic diagrams, different types of messages and control panels. Has a slot for an LTE modem. Has the option to install an internal 2.5 inch HDD inside the case. This is the fastest and most powerful Vutlan monitoring device.
Contact our sales department regarding options and which version suits your project.
REMOTE-MON
CPU: 720Mhz/ 4 Core/2GB/Linux v.5.10
10/100 ethernet connection
2 x USB to USB camera, USB FLASH, USB HUb
8 x Analog ports
32 x Digital inputs
8 x Isolated digital outputs max. 24Vdc, 15mA
2 x Relay (NC NO COM) max. 10A for AC, 9~30V for DC voltage
LTE slot modem (modem purchased separately)
1 x Audio-Video output & input
SBNP v1, v2c, v3
OpenVPN, SSL, HTTPS
DHCP, HTTP, DynDNS, SMTP, RADIUS, Syslog, NTP server, HTTP request
API
Notification E-mail, phone call, SNMP, WEB to SMS, SMS Link
Logging SD, USB Flash, E-mail, FTP
power supplies single/redundant 24-48Vdc, 230Vac (contact sales regarding versions)
