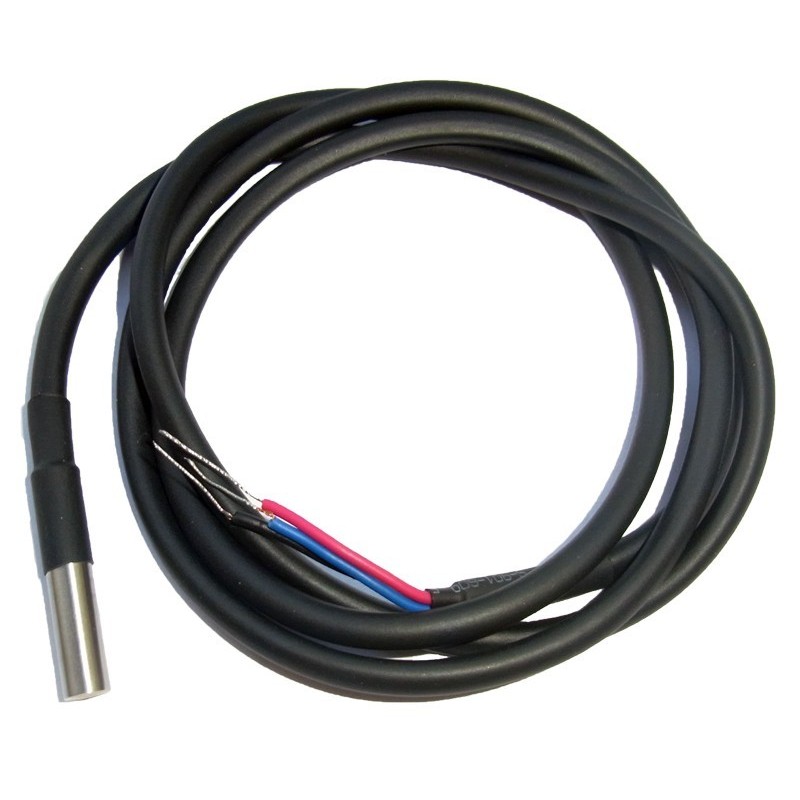

Thermocouple with 3 m cable, temperature between -55 'C ~ + 125
Product code: GSM-IO-ENV-KT3
These waterproof sensors are sold with different lengths. This sensor uses the 1-Wire communication interface, which allows you to connect several of these sensors to the same pin. It has stored a unique 64-bit address that identifies each sensor, the sensor tells us what gives us temperature measurement or reading the temperature of a seo. Measured in a temperature range between -55 ° C and 125 ° C
GSM-IO-ENV-KT3
7 Items
Data sheet
- Forsyning
- mellem 3 - 5.5V
- Sensor
- Rustfrit stål tip
- Funktioner
- 1-wire (Flere til samme pin)
Thermal sensor for mounting 3 meters
Sensor tip: stainless steel
Medium 3.0V - 5.5V supply
With new chip for each pin
BLUE pin: DATA
BLACK pin: GND
RED pin: VCC
1-wire (multiple to same pin)
